AT-0505-DP01:

Indoor Antenna, panel, dual-band 2.4/5GHz, 5dBi, 2x2, dual-polarity RP-SMA (for 7372-E)

AT-0505-DP01 Specifications
Application	Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	5dBi
Wi-Fi Band	2.4 GHz / 5 GHz
3dB Beamwidth H/V	120/60 degrees
Connector(s)	RP - SMA Male
Dimensions	200x200x33
Weight	260g
Mounting	Wall
Operating Temperature	-40°C to 70°C
IP Rating	Indoor

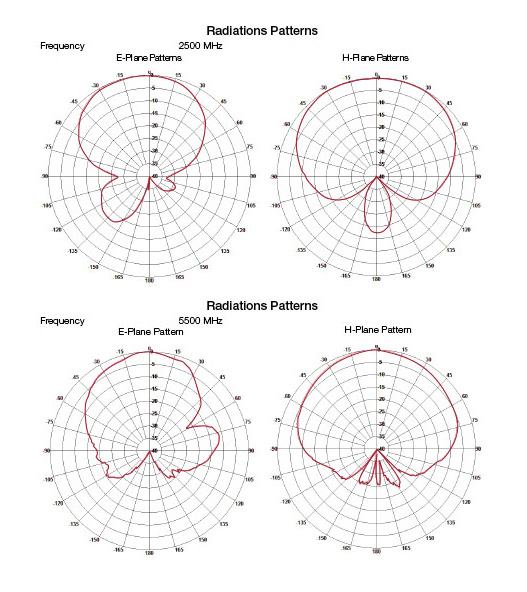

Radiation Pattern

AT-0303-VP01:

Indoor Antenna, elbow-joint, dual-band 2.4/5GHz, 3dBi, vertical polarity, RP-SMA, pair (for 7372-E)

AT-0303-VP01 Specifications
Application	Mesh/Client Access
Polarization	Vertical
Antenna Gain	3dBi
Wi-Fi Band	2.4 GHz / 5 GHz
3dB Beamwidth H/V	Omni
Connector(s)	RP - SMA Male
Dimensions	95.9mm Straight
Weight	10g per antenna
Mounting	Direct attach
Operating Temperature	-20°C to 70°C
IP Rating	Indoor
Radiation Pattern

AT-0005-VP:

One 2.4GHz omni-directional antenna, vertically polarized, 5dBi

AT-0005-VP Specifications
Application	Client Access
Polarization	Vertical
Antenna Gain	5.5dBi
Wi-Fi Band	2.4 GHz
3dB Beamwidth H/V	Omni/32 degrees
Connector(s)	N-Male Connector (for 7782-E)
Dimensions	255mm Height
Weight	200g
Mounting	Direct attach
Operating Temperature	-45°C to 70°C
IP Rating	IP-67

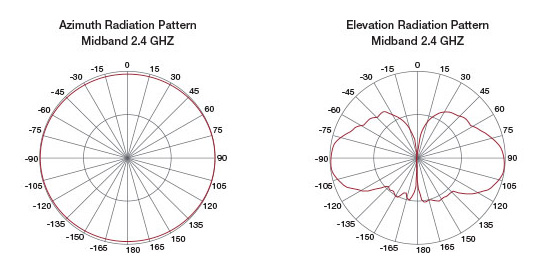

Radiation Pattern

AT-0006-HP:

One 2.4GHz omni-directional antenna, horizontally polarized, 6dBi

AT-0006-HP Specifications
Application	Client Access
Polarization	Horizontal
Antenna Gain	6dBi
Wi-Fi Band	2.4 GHz
3dB Beamwidth H/V	Omni/25 degrees
Connector(s)	N-Male Connector (for 7782-E only)
Dimensions	329 mm Height
Weight	260g
Mounting	Direct attach
Operating Temperature	-30°C to 70°C
IP Rating	IP-67
Radiation Pattern

AT-0536-HP:

5GHz horizontally polarized 5dBi omni-directional antenna

AT-0536-HP Specifications
Application	Mesh/Client Access
Polarization	Horizontal
Antenna Gain	5dBi
Wi-Fi Band	5 GHz
3dB Beamwidth H/V	Omni/33 degrees
Connector(s)	One N-Type Male
Dimensions	200mm Height
Weight	180g
Mounting	Direct attach
Operating Temperature	-30°C to 70°C
IP Rating	IP-67

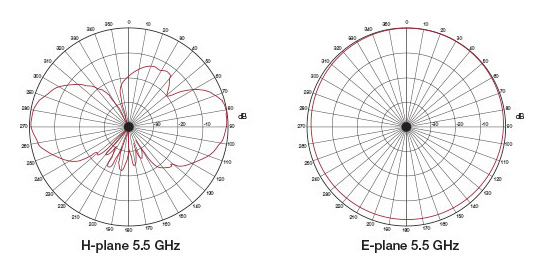

Radiation Pattern

AT-0636:

AT-0636 Specifications
Application	Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	5.5dBi
Wi-Fi Band	5 GHz
3dB Beamwidth H/V	Omni/33 degrees
Connector(s)	Refer to individual antenna specs
Dimensions	Refer to individual antenna specs
Weight	Refer to individual antenna specs
Mounting	Direct attach
Operating Temperature	-30°C to 65°C
IP Rating	IP-67

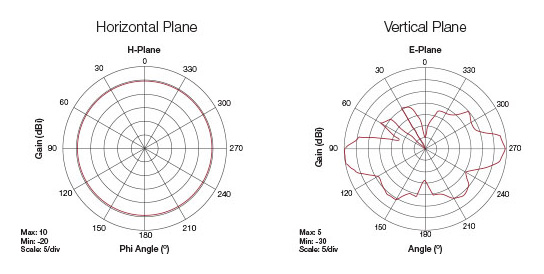

Radiation Pattern

AT-1212-DP:

5GHz dual polarized 12dBi 120 degrees sector antenna

AT-1212-DP Specifications
Application	PtMP Root/Mesh/Client Access
Polarization	Vertical & Horizontal
Antenna Gain	12.5dBi
Wi-Fi Band	5 GHz
3dB Beamwidth H/V	120/15 degrees
Connector(s)	Two N-Type, two 1m RF cables included
Dimensions	200x200x33
Weight	1000g
Mounting	Wall/Pole Mount, mounting kit included
Operating Temperature	-55°C to 65°C
IP Rating	IP-67

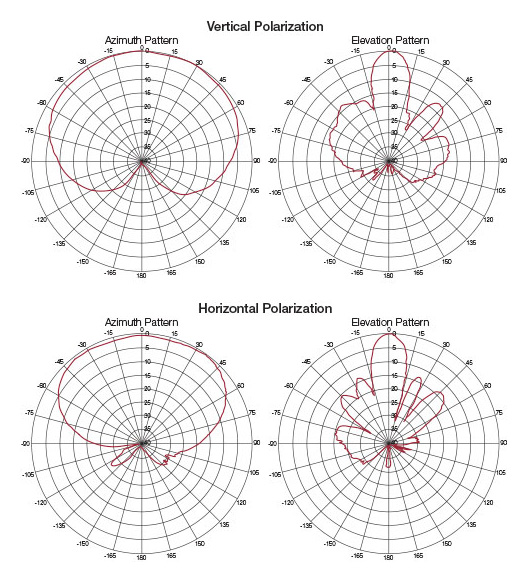

Radiation Pattern

AT-2101-DP:

5GHz dual polarized high gain 21dBi directional antenna

AT-2101-DP Specifications
Application	Long range backhaul /PtP/PtMP Non-Root
Polarization	Vertical & Horizontal
Antenna Gain	21dBi
Wi-Fi Band	5 GHz
3dB Beamwidth H/V	10/10 degrees
Connector(s)	Two N-Type, two 1m RF cables included
Dimensions	305x305x15mm
Weight	900g
Mounting	Wall/Pole Mount, mounting kit included
Operating Temperature	-55°C to 65°C
IP Rating	IP-67

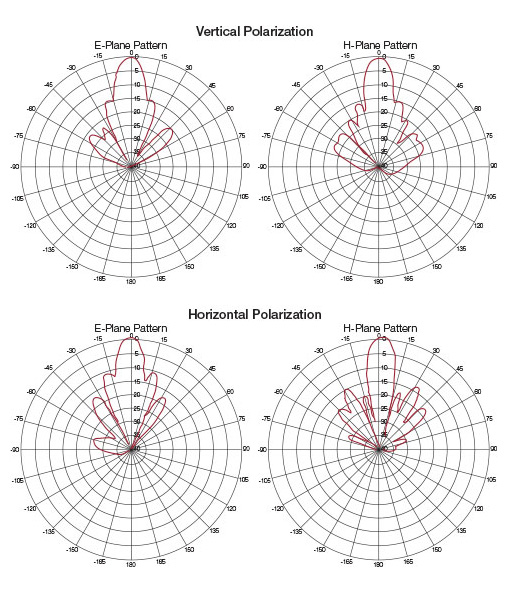

Radiation Pattern

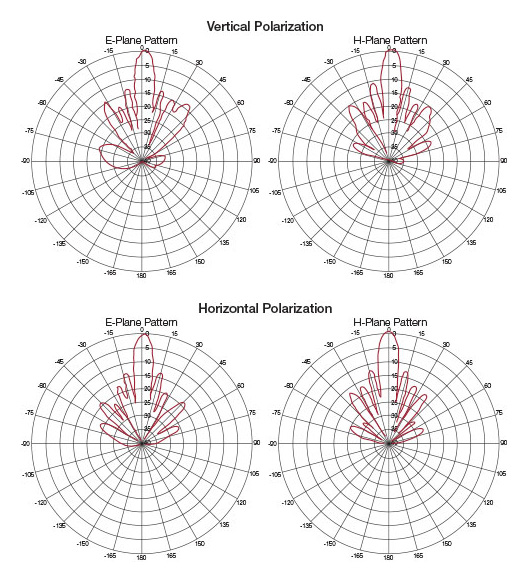

AT-2401-DP:

5GHz dual polarized high gain 24dBi directional antenna

AT-2401-DP Specifications
Application	Long range backhaul /PtP/PtMP Non-Root
Polarization	Vertical & Horizontal
Antenna Gain	V24.5dBi / H23.5dBi
Wi-Fi Band	5 GHz
3dB Beamwidth H/V	7-9/7-9 degrees
Connector(s)	Two N-Type, two 1m RF cables included
Dimensions	370x370x40mm
Weight	1800g
Mounting	Wall/Pole Mount, mounting kit included
Operating Temperature	-40°C to 65°C
IP Rating	IP-67
