RUCKUS H350 Indoor Access Point
Wall-Mounted Wi-Fi 6 2x2:2 Indoor Access Point (AP), Switch and IoT gateway

RUCKUS H350RUCKUS H350RUCKUS H350RUCKUS H350
RUCKUS H350
CommScope RUCKUS Products
RUCKUS H350 Indoor Access Point
Dual band 802.11ax Wi-Fi 6 Wall plate AP
Ruckus Wi-Fi 6 dual-band concurrent 2.4 GHz & 5 GHz, Wired/Wireless Wall Switch, BeamFlex+, 1 10/100/1000 & 2 10/100/1000 Ethernet Access Ports, POE in.  Does not include DC power supply.
#901-H350-US00
Our Price: $595.00

More pricing below, click here!

Overview:


How many devices can you connect in a single room? If you operate a hotel, apartment building, or other multi dwelling unit (MDU) structure, your answer can have a big impact on your bottom line.

The RUCKUS® H350 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with two-ports of Gigabit Ethernet to connect in-room wired devices, without extra cabling and add supports for Zigbee® or Bluetooth® Low Energy (BLE). Put it all in a sleek, low profile design that can be discretely installed over a standard electrical outlet.

The RUCKUS H350 wall-mounted access point, IoT gateway and Ethernet switch makes it easy to support in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with two-ports of Gigabit Ethernet to connect in-room wired devices, without extra cabling and add supports for Zigbee® or Bluetooth® Low Energy (BLE). Put it all in a sleek, low profile design that can be discretely installed over a standard electrical outlet.

The RUCKUS® H350 delivers consistent, reliable Wi-Fi 6 (802.11ax) wireless networking without breaking the bank. The AP features the patented RUCKUS technologies for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences. But it provides them in an entry level product built for smaller venues with limited device diversity.

The H350 is a great choice for low-density enterprise, hospitality, MDU, small and medium-size businesses, retail locations, restaurants, and multi-tenant small offices and branch offices.

The H350 Wi-Fi 6 AP incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio.

  • Extended coverage with BeamFlex+ utilizing multi-directional antenna patterns.
  • Improve throughput with ChannelFly®, which dynamically finds less congested Wi-Fi channels to use.

The H350 provides an ideal combination of features and performance for smaller environments.

Whether you’re deploying ten or ten thousand APs, the H350 is also easy to manage through RUCKUS’ appliance, virtual, controller-less and cloud management options.

Features and Benefits:

In hotels, apartment buildings, and other multi-dwelling structures, wireless connectivity can carry a hefty price tag. You need to connect a wide range of wired devices - IPTV set-top boxes, IP phones, networked minibars - IoT devices like smart locks and sensors - while delivering a great wireless experience for guests.

The RUCKUS H350 wall-mounted access point, IoT gateway, and Ethernet switch make it easy to support in-room connectivity requirements. It starts with RUCKUS patented Wi-Fi optimization intelligence to deliver the industry's highest-performing wireless connectivity. Combine that with two-ports of Gigabit Ethernet to connect in-room wired devices, without extra cabling and add supports for Zigbee® or Bluetooth® Low Energy. Put it all in a sleek, low-profile design that can be discretely installed over a standard electrical outlet.

The RUCKUS® H350 delivers consistent, reliable Wi-Fi 6 (802.11ax) wireless networking without breaking the bank. The AP features the patented RUCKUS technologies for performance optimization and interference mitigation found in our premier access points, delivering superior user experiences. But it provides them in an entry-level product built for smaller venues with limited device diversity.

Benefits:

  • GREAT ALL-IN-ONE: WI-FI 6, IoT, WIRED PORTS
    Deliver great in-room Wi-Fi and enable consolidated IP services with Wi-Fi 6 speed, BLE or Zigbee, and a built-in 2-port Gigabit Ethernet switch.

  • STUNNING WI-FI PERFORMANCE
    Patented RUCKUS technologies for performance optimization and interference mitigation delivers extended coverage and superior user experience.

  • IOT ON BOARD
    Eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network

  • MESH NETWORKING
    Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.

  • AFFORDABLE ENTERPRISE PERFORMANCE
    The H350 delivers unprecedented price/performance

  • KEEP EXISTING SWITCHES AND CABLES
    Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades.

  • MULTIPLE UNIFIED MANAGEMENT OPTIONS
    Manage the H350 from the cloud, with on-premises physical/virtual appliances, or without a controller.

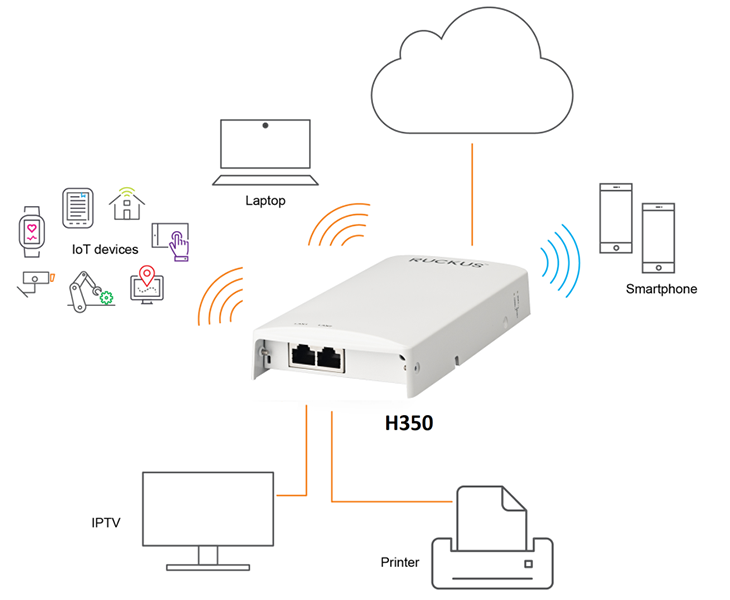

Deployment:

Converged Wired And Wireless Services

RUCKUS H350 Deployment

Specifications:


WI-FI
Wi-Fi Standards
  • IEEE 802.11a/b/g/n/ac/ax
Supported Rates
  • 802.11ax: 4 to 1,774 Mbps (MCS0 to MCS11, NSS=1 to 2 for HE 20/40/80)
  • 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT 20/40/80)
  • 802.11n: 6.5 Mbps to 300 Mbps (MCS0 to MCS15)
  • 802.11a/g: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps
Supported Channels
  • 2.4Ghz: 1-13
  • 5Ghz: 36-64, 100-144, 149-165
MIMO
  • 2x2 SU-MIMO
  • 2x2 MU-MIMO
Spatial Streams
  • 2 Streams SU/MU-MIMO (2.4Ghz & 5Ghz)
Radio Chains and Streams
  • 2x2:2 (2.4Ghz & 5Ghz)
Channelization
  • 20, 40, 80MHz
Security
  • WPA-PSK, WPA-TKIP, WPA2 AES, WPA3-Personal, WPA3-Enterprise, 802.11i, Dynamic PSK, OWE
  • WIPS/WIDS
Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • Captive Portal
  • Hotspot
  • Hotspot 2.0
  • WISPr
RF
Antenna Type
  • BeamFlex+ adaptive antennas with polarization diversity
  • Adaptive antenna that provides multiple unique antenna patterns
Antenna Gain (max)
  • Up to 1dBi
Peak Transmit Power (aggregate across MIMO chains)
  • 2.4GHz: 19dBm
  • 5GHz: 22dBm
Minimum Receive Sensitivity1
  • -100dBm
Frequency Bands
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)
2.4GHZ RECEIVE SENSITIVITY (DBM) - PER RADIO CHAIN
HT20 HT40 VHT20 VHT40
MCS0 MCS7 MCS0 MCS7 MCS0 MCS7 MCS0 MCS7
-94 -75 -91 -72 -94 -75 -91 -72
HE20 HE40
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-94 -75 -71 -65 -91 -72 -68 -62
5GHZ RECEIVE SENSITIVITY (DBM) - PER RADIO CHAIN
VHT20 VHT40 VHT80
MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9
-97 -76 -72 -92 -73 -67 -89 -70 -64
HE20 HE40 HE80
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-95 -76 -70 -65 -92 -73 -67 -62 -89 -70 -64 -59
2.4GHZ TX POWER TARGET
Rate Pout (dBm)
MCS0 HT20 16
MCS7 HT20 15
MCS8 VHT20 14
MCS9 VHT40 13
MCS11 HE40 11
5GHZ TX POWER TARGET
Rate Pout (dBm)
MCS0 HT20 19
MCS7 VHT40, VHT80 15.5
MCS9 VHT40, VHT80 14.5
MCS11 HE20, HE40, HE80 12
PERFORMANCE AND CAPACITY
Peak PHY Rates
  • 2.4GHz: 574Mbps
  • 5GHz: 1,200Mbps
Client Capacity
  • Up to 512 clients per AP
SSID
  • 8 per radio
RUCKUS RADIO MANAGEMENT
Antenna Optimization
  • BeamFlex+
  • Polarization Diversity with Maximal Ratio Combining (PD-MRC)
Wi-Fi Channel Management
  • ChannelFly
  • Background Scan Based
Client Density Management
  • Adaptive Band Balancing
  • Client Load Balancing
  • Airtime based WLAN Prioritization
  • Airtime Fairness
SmartCast Quality of Service
  • QoS-based scheduling
  • Directed Multicast
  • L2/L3/L4 ACLs
Mobility
  • SmartRoam
Diagnostic Tools
  • Spectrum Analysis
  • SpeedFlex
NETWORKING
Controller Platform Support
  • SmartZone
  • ZoneDirector
  • Unleashed2
  • Cloud
  • Standalone
Mesh
  • SmartMesh™ wireless meshing technology. Self-healing Mesh
IP
  • IPv4, IPv6, dual stack
VLAN
  • 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
  • VLAN Pooling
  • Port-based
802.1x
  • Authenticator and Supplicant
Tunnel
  • L2TP, GRE, Soft-GRE
Policy Management Tools
  • Application Recognition and Control
  • Access Control Lists
  • Device Fingerprinting
  • Rate Limiting
IoT
  • Integrated BLE and Zigbee (1 radio, switchable)
PHYSICAL INTERFACES
Ethernet
  • 1x 1GbE port, RJ-45, PoE In – 802.3af Class 3
  • 2x 1GbE ports, RJ-45
PHYSICAL CHARACTERISTICS
Physical Size
  • 89.5 mm (W) x 178.5 mm (L), 29.3 mm (H)
  • 3.52in (W) x 7.03in (L) x 1.15in (H)
Weight
  • 276g (0.608lbs) without bracket
  • 346g (0.763lbs) with bracket
Mounting
  • Electrical wallbox; Standard US and EU single gang wall jack
  • Optional bracket for offset & wall mount
Operating Temperature
  • 0°C (32°F) - 40°C (104°F)
Operating Humidity
  • Up to 95%, non-condensing

Power Configuration Options

POWER CONFIGURATION OPTIONS
Power Mode 802.3af
Wi-Fi (2.4GHz) Tx Power (per Chain) 16dBm (2x2)
Wi-Fi (5GHz) Tx Power (per Chain) 19dBm (2x2)
IoT Radios BLE or Zigbee Enabled
Ethernet LAN Ports (2x) Enabled
Power Consumption 12.54W
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance3
  • Wi-Fi CERTIFIED™ a, b, g, n, ac
  • Wi-Fi CERTIFIED 6™
  • WPA3 Enterprise Personal
  • Wi-Fi Enhanced Open™
  • Wi-Fi Agile Multiband™
  • Passpoint®
  • Vantage
  • WMM®
Standards Compliance4
  • EN 60950-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services
  • SPoT
Network Analytics
  • SmartCell Insight (SCI)
  1. Rx sensitivity varies by band, channel width and MCS rate.
  2. Refer to Unleashed datasheets for SKU ordering information.
  3. For complete list of WFA certifications, please see Wi-Fi Alliance website.
  4. For current certification status, please see price list.

Documentation:

Download the RUCKUS H350 Indoor Access Point Datasheet (PDF).

Pricing Notes:

CommScope RUCKUS Products
RUCKUS H350 Indoor Access Point
Dual band 802.11ax Wi-Fi 6 Wall plate AP
Ruckus Wi-Fi 6 dual-band concurrent 2.4 GHz & 5 GHz, Wired/Wireless Wall Switch, BeamFlex+, 1 10/100/1000 & 2 10/100/1000 Ethernet Access Ports, POE in.  Does not include DC power supply.
#901-H350-US00
Our Price: $595.00
