Ruckus ZoneFlex R350
Indoor 802.11ax Wi-Fi 6 Access Point IoT-Ready

CommScope RUCKUS Products
Ruckus ZoneFlex R310, dual band, 802.11ax wireless access point, 2x2:2 + 2x2:2 streams, adaptive antennas, dual ports, PoE
Ruckus ZoneFlex R310, dual band, 802.11ax wireless access point, 2x2:2 + 2x2:2 streams, adaptive antennas, dual ports, PoE
#901-R350-US02
Our Price: $495.00
WatchDog End User Support, Standalone R350
WatchDog End User Support, Standalone R350, 1 Year
WatchDog End User Support, Standalone R350, 1 Year
#806-R350-1000
Get a Quote!
WatchDog End User Support, Standalone R350, 3 Year
WatchDog End User Support, Standalone R350, 3 Year
#806-R350-3000
Get a Quote!
WatchDog End User Support, Standalone R350, 5 Year
WatchDog End User Support, Standalone R350, 5 Year
#806-R350-5000
Get a Quote!

More pricing below, click here!

Overview:

Smaller locations can face big-time demands on their wireless infrastructure. Whether working out of a small office or connecting to a public hotspot, users are often still accessing the same high-bandwidth applications and content they’d consume anywhere else. And they expect strong, reliable connectivity.

How can you provide it without breaking the bank? the RUKCUS® R350 Wi-Fi 6, IoT ready indoor access point delivers 802.11ax wireless connectivity combined with all the RUCKUS patented technologies for performance optimization and interference mitigation found in our premier access points.

Get industry-leading Wi-Fi 6 performance in a package designed for smaller venues—with a price tag to match.

Ideal choice for low-density enterprise and hotspot environments

Including small and medium-size businesses, retail locations, restaurants, and multi-tennant small offices and branch offices

The R350 Wi-Fi 6 AP incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio

  • Extended coverage with BeamFlex utilizing multi-directional antenna patterns
  • Improve throughput with ChannelFly®, which dynamically finds less congested Wi-Fi channels to use.

The R350 provides an ideal combination of features and performance for smaller environments. Additionaly it supports up to 256 clients and 16 SSIDs per AP.

Whether you’re deploying ten or ten thousand APs, the R350 is also easy to manage through RUCKUS’ appliance, virtual, controller-less and cloud management options

Benefits:

LATEST WI-FI STANDARDS
The R350 access point (AP) support the latest Wi-Fi 6(802.11ax) technology

STUNNING WI-FI PERFORMANCE
Patented RUCKUS technologies for performance optimization and interference mitigation delivers extended coverage and superior user experience

IoT READY
Eliminate siloed networks and unify Wi-Fi and IoT technologies into one single network by using or any future wireless technologies with the addition of an optional USB module.

MESH NETWORKING
Dynamically create self-forming, self-healing network mesh with RUCKUS patented SmartMesh technology reducing expensive cabling, and complex configurations by checking a box.

AFFORDABLE ENTERPRISE PERFORMANCE
The R350 delivers unprecedented price/performance offering extended range at an affordable price

MULTIPLE UNIFIED MANAGEMENT OPTIONS
Manage the R350 from the cloud, with on-premises physical/virtual appliances, or without a controller.

KEEP EXISTING SWITCHES AND CABLES
Designed to operate on existing PoE switches and CAT 5e cabling to minimize costly power infrastructure upgrades

Specifications:




R650

R610

R510

R320

R350





R650 Learn More R610 Learn More R510 Learn More R320 Learn More R350 Learn More



Feature/Description

Mid-range

Wi-Fi 6 (802.11ax) dual- concurrent AP with

MU-MIMO and BeamFlex+

Mid-range

802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+

Mid-range

802.11ac Wave 2 dual-concurrent AP with MU-MIMO and BeamFlex+

Entry level

802.11ac Wave 2 dual-concurrent AP with BeamFlex

Indoor Access Point

Indoor 802.11ax Wi-Fi 6 Access Point



Maximum PHY rate

2400 Mbps (5GHz)

574 (2.4GHz)

1300  Mbps (5GHz)

450  Mbps (2.4GHz)

867 Mbps (5GHz)

300 Mbps (2.4GHz)

867 Mbps (5GHz)

300 Mbps (2.4GHz)

1200 Mbps (5GHz)

574 Mbps (2.4GHz)



Wi-Fi technology

802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™

802.11ac (5GHz)

802.11n (2.4GHz)

802.11ac (5GHz)

802.11n (2.4GHz)

802.11ac (5GHz)

802.11n (2.4GHz)

802.11ax (5GHz)

802.11ax (2.4GHz)

Concurrent users

512

512

512

256

256



Radio chains:streams

5GHz: 4x4:4 MU-MIMO

2.4GHz: 2x2:2 MU-MIMO



3x3:3



2x2:2



2x2:2



2x2:2

Antenna patterns (per band)

128

512

64

64

64

Antenna gain

Up to 3dBi

Up to 3dBi

Up to 3dBi

Up to 3dBi

Up to 3dBi

PD-MRC

Rx sensitivity (2.4/5GHz)

-101dBm

-100dBm

-103dBm

-101dBm

-101dBm

ChannelFly

SmartMesh

USB (IoT Ready)



Ethernet ports

1 x 1 GbE

1 x 2.5 GbE



2 x 1GbE



2 x 1GbE



1 x 1GbE



1 x 1GbE

Integrated BLE/ZigBee



WLAN Control and Management

·   ZoneDirector

·   SmartZone

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

·   RUCKUS Cloud

·   ZoneDirector

·   SmartZone

·   Unleashed

·   Cloud

·   Standalone

† Maximum power varies by country
1 BeamFlex gains are statistical system level effects translated to enhanced SINR based on observations over time in real-world conditions with multiple APs and many clients
* Subject to country regulations
** For current certification status please see price list

Views:

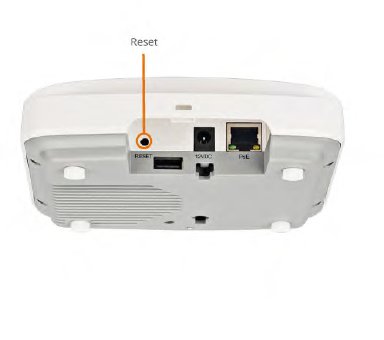

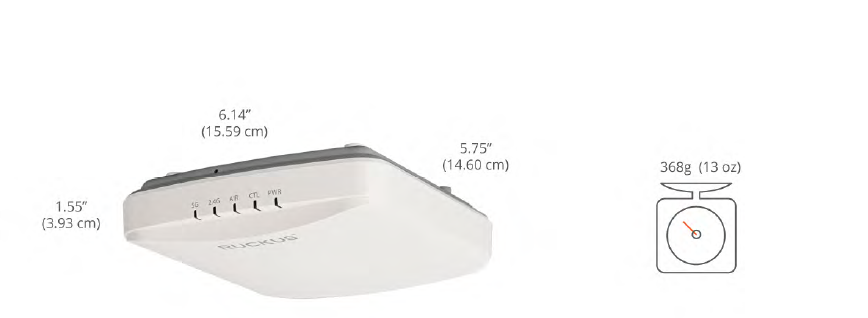

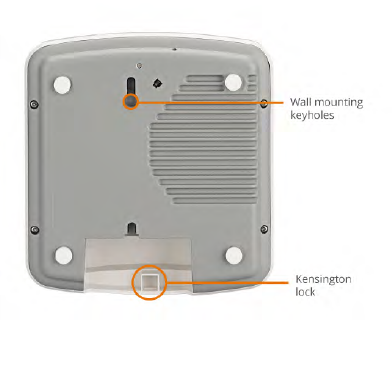

The ZoneFlex R350

R350



R350

R350

Documentation:

Download the Ruckus ZoneFlex R350 Datasheet (PDF).
