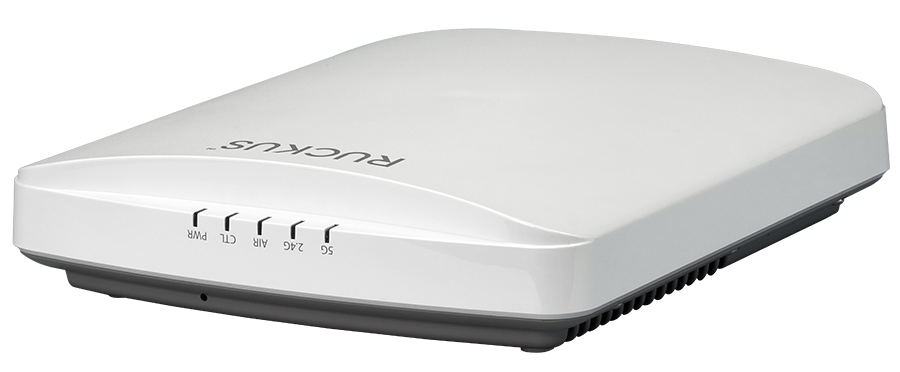

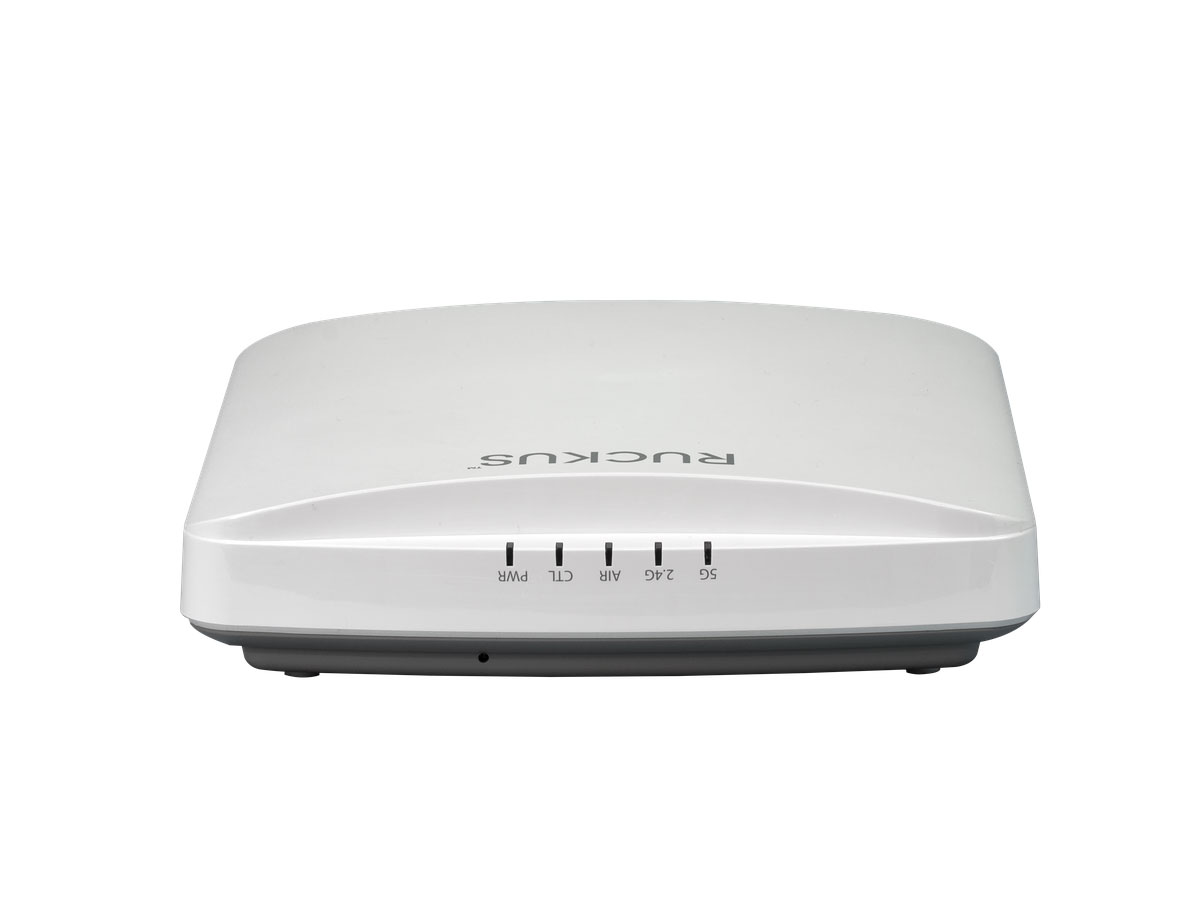

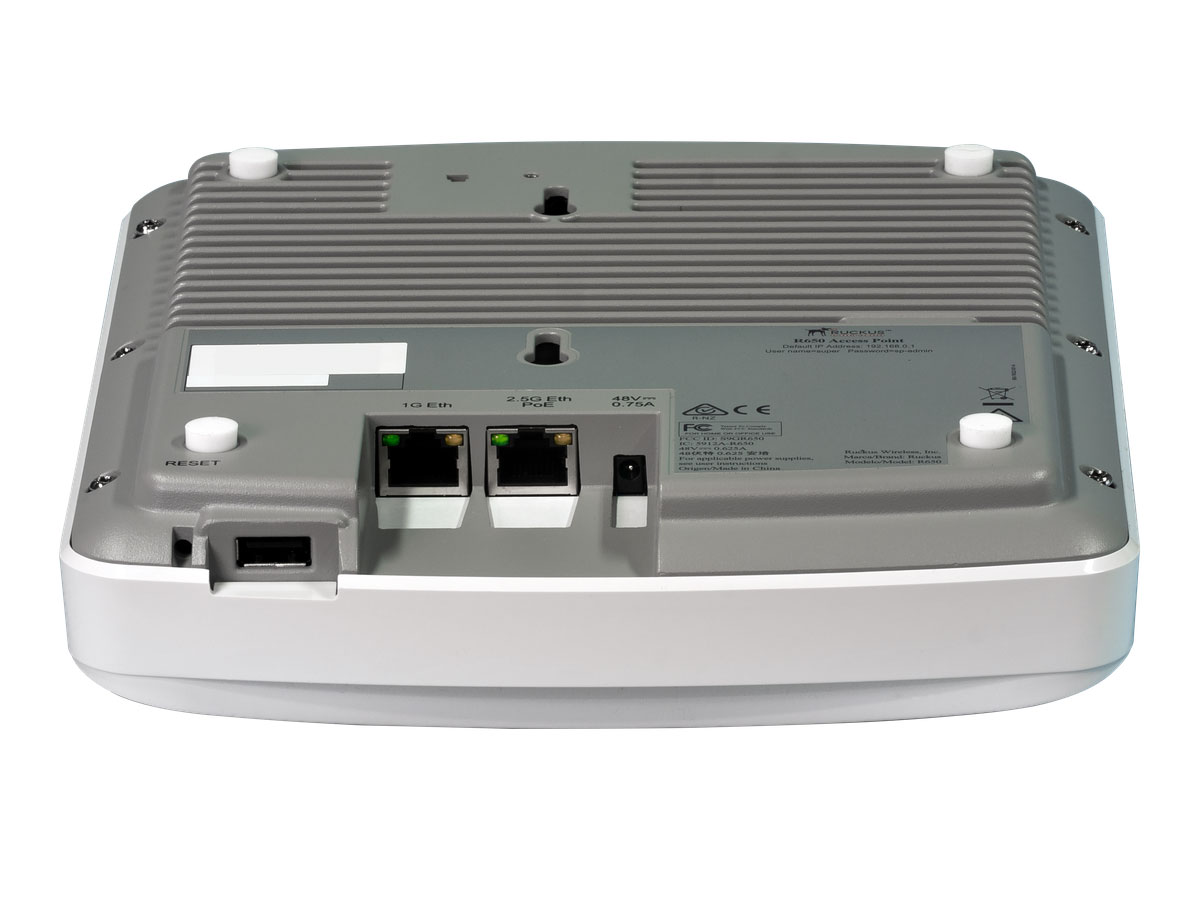

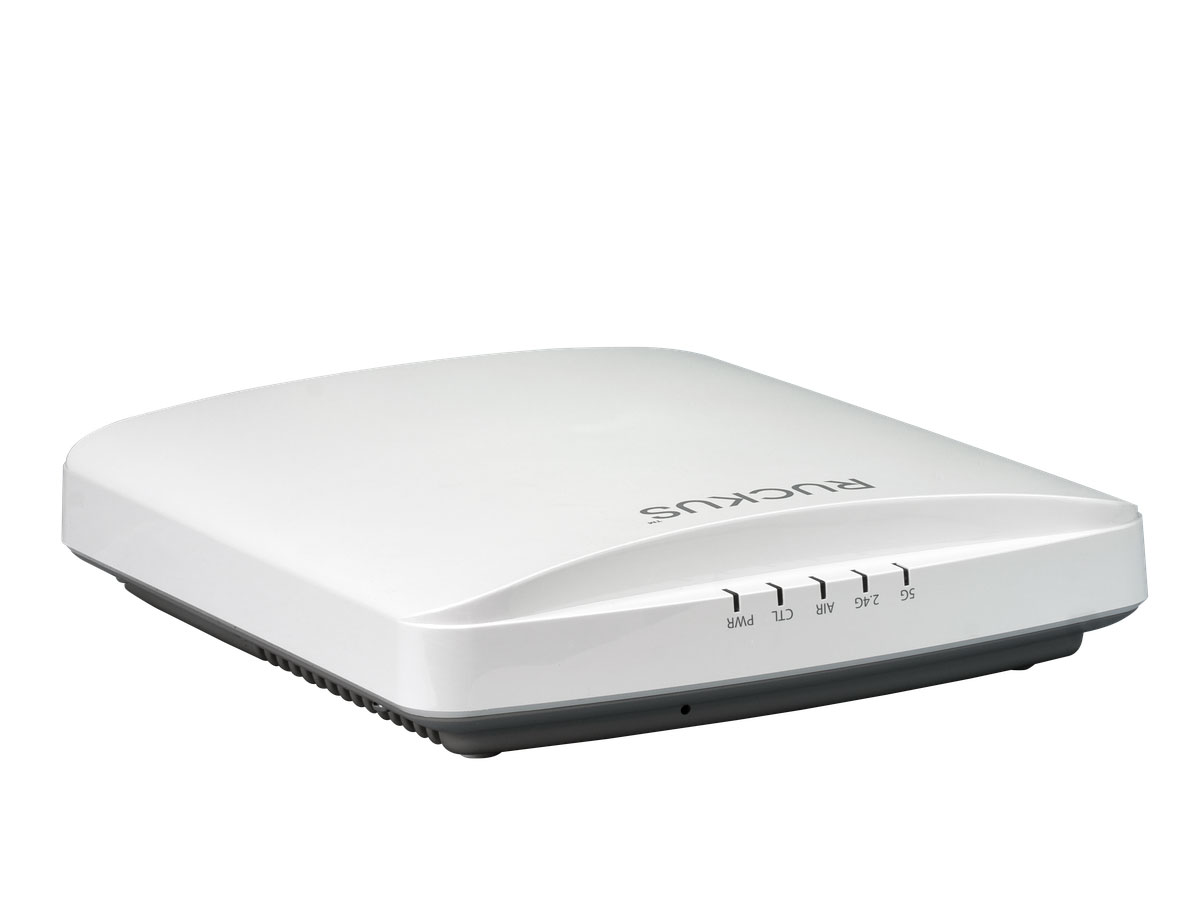

Ruckus ZoneFlex R650 Unleashed

CommScope RUCKUS Products
Ruckus ZoneFlex R650 Unleashed Series
RUCKUS Unleashed R650 dual-band 802.11abgn/ac/ax �Wireless Access Point with Multi-Gigabit Ethernet backhaul, 4x4:4 �+ 2x2:2 streams, OFDMA, MU-MIMO, BeamFlex+, dual ports, PoH/uPoE/802.3at PoE support.
Does not include power adapter or PoE injector. Includes Limited Lifetime Warranty
#9U1-R650-US00
Our Price: $1,095.00
WatchDog End User Support for Unleashed R650
Support includes Level 1-3 Support (24 x 7 x 365 days), Support web login, software updates and upgrades. Advance Replacement on the Unleashed APs is now included with support. There is no need to purchase Advance Replacement support separately.
WatchDog End User Support for Unleashed R650, 1 Yr
#806-RU65-1000
Our Price: $28.00
WatchDog End User Support for Unleashed R650, 3 Yr
#806-RU65-3000
Our Price: $56.00
WatchDog End User Support for Unleashed R650, 5 Yr
#806-RU65-5000
Our Price: $84.00

More pricing below, click here!

Overview:

The days when a consumer grade Wi-Fi could meet most small business needs are over. Today, even small businesses need fast, reliable and always-on connectivity for dozens or even hundreds of devices. At the same time, with few (if any!) IT staff, small businesses don’t have the time or expertise to install and manage Wi-Fi.

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points (APs). These APs use our patented technologies to deliver industry leading performance, but in a package designed and priced for small businesses.

Blazing-Fast Wi-Fi Performance:

Nobody wants bad Wi-Fi. Customers hate it and, frankly, you don’t have time for it. Fortunately, that’s not something you need to worry about with Unleashed. Unleashed access points are packed with over ten years of patented Wi-Fi performance innovations—innovations that ensure you and your customers will be in Wi-Fi heaven, no matter how tough the environment.

Install and Manage with Ease:

With Zero-Touch Mesh, set up your entire Wi-Fi network in a few simple steps from a mobile device or browser with an intuitive, easy-to- understand user interface. Gain detailed insights about your network and perform all key administrative tasks from anywhere with the free RUCKUS Unleashed mobile app (available onApp StoreandGoogle Play).

More Than Wi-Fi:

Enhance your network with built-in features such as Guest Services, DPSK security, Zero IT onboarding and Application Visibility. If the internet goes out— even if an AP fails—you can continue to access printers and other network devices.

Protect Your Investment:

Scale up when you need to. Easily expand your Wi-Fi across multiple locations with the Unleashed Multi-Site Manager. Growing even more? Move up to a controller- or cloud-based deployment with your existing Unleashed APs.

Key benefits and features

BEST-IN-CLASS PERFORMANCE

BeamFlex+—Patented Adaptive Antenna Technology
RUCKUS Unleashed APs integrate our patented, softwarecontrolled adaptive antennas. BeamFlex+ antennas adapt automatically to client locations and environmental conditions, continually optimizing RF signals for every connected device, on a per-packet basis. It’s the “secret sauce” that lets our APs maintain stronger connections and deliver better performance than the competition.

ChannelFly—Machine Learning Auto Channel Selection
Most APs can switch channels when the one they’re using to connect with a given device gets congested. Only RUCKUS APs with ChannelFly technology, however, use machine learning and specialized algorithms to identify the best alternate channel before switching over. Combined with BeamFlex+ adaptive antenna technology, ChannelFly delivers substantially higher throughput than competing APs.

SmartMesh—Self-Forming, Self-Healing Mesh
SmartMesh makes it simple to blanket every corner of your space with reliable Wi-Fi coverage—while eliminating the need for cumbersome radio planning and expensive cabling to every AP. Just check the “Zero Touch Mesh” box in the management app, and it automatically establishes wireless mesh connections between individual APs. RUCKUS Unleashed APs use our patented smart antenna technology to create strong, reliable mesh links. And if a link ever fails, the network heals itself automatically.

THE SMARTER SMB SOLUTION

Install in Minutes
RUCKUS Unleashed APs can be installed in under 5 minutes from a laptop browser (e.g., Chrome, Safari) or from iPhone and Android mobile devices. Configure just one “Master AP,” and you can automatically push that configuration securely to all the other APs in the network with the “Zero Touch Mesh” features.

Easy to Manage
You can manage smaller Unleashed networks from anywhere in the world with the free Unleashed Mobile app. The app’s dashboard puts all the essential information about your network, and provides access to all key administrative tasks and troubleshooting options, right at your fingertips.

Lower Capital and Operational Costs
Unleashed APs come with controller functions built in. You don’t need separate controller appliances or access point licenses, so the upfront costs are much lower than other business-class APs. Unleashed networks are also designed to be simple to deploy and manage—no specialized network or wireless expertise required.

Network Investment Protection
When you deploy RUCKUS Unleashed APs and switches, you’re making an investment that will continue to serve your business as you grow. Expand across across 10,000 locations with the Unleashed Multi-Site Manager. And if your business grows even more, you can move up to a controller-based or cloud-based solution using the same Unleashed APs you’ve already deployed.


Support up to 128 APs and 2,048 concurrent clients
802.1X Authentication Caching
802.1X EAP authentication using an external AAA server (RADIUS)
Access Control Lists
AP Groups
Application Recognition and control. Application-based rate-limiting and QoS traffic shaping. The following pie charts are provided:
  • Top 10 clients by application
  • Top 10 applications used in the networks
  • Top 10 applications used by each client
Auto-Discovery (switches)
Automatic Master AP Selection: One RUCKUS Unleashed AP serves as the "Master AP," one of the member APs will take over controller functions if the Master is unreachable.
Bonjour Gateway
CLI Setup Wizard
Client Renaming
Client Isolation
Client Fingerprinting and Device Access Policies
Configuration backup and restore (APs and switches)
DHCP server (configured manually from Unleashed Network Master AP)
Disable WLAN Service on Master AP
Dynamic Pre-Shared Key (DPSK)
Ethernet Port VLAN Support for H320 and H510
Firmware updates (switch and AP)
Guest Access WLANs
Hotspot (WISPr) WLANs
HTTP-based Captive Portal
HTTP/HTTPS redirect
Layer 2 roaming
Management IP Interface
Multi-language support
Preferred Master - Admins can configure an AP to serve as the "preferred" Unleashed Master AP. If the preferred Master is offline, another member AP will become the Master. When the preferred Master comes back online, it will resume the Unleashed Master role.
One-step firmware upgrades of the entire network from a single interface
Password Recovery
Radio Frequency (RF) management features:
  • BeamFlex+
  • ChannelFly
  • Background Scanning
  • Automatic Channel Selection based on ChannelFly or Background Scanning
  • Band Steering
  • Client Load Balancing
  • Rogue AP detection
Same-WLAN support for multiple social media logins
Self-Service Guest Pass
SmartMesh (on select models)
SNMP
Social Media login (Facebook, Google, LinkedIn, Microsoft and WeChat)
Switch reporting: port status; PoE utilization; Health; Events & Alarms
The Unleashed Master AP can be configured in Gateway mode to provide routing, NAT and DHCP functions for all devices in a local area network, in addition to serving as the controller and serving clients.
Troubleshooting:
  • SpeedFlex
  • Client Connectivity
  • Internet Status
  • AP Ethernet Port Status
  • AP Reboot Cause Reporting
Uniform Recovery SSID

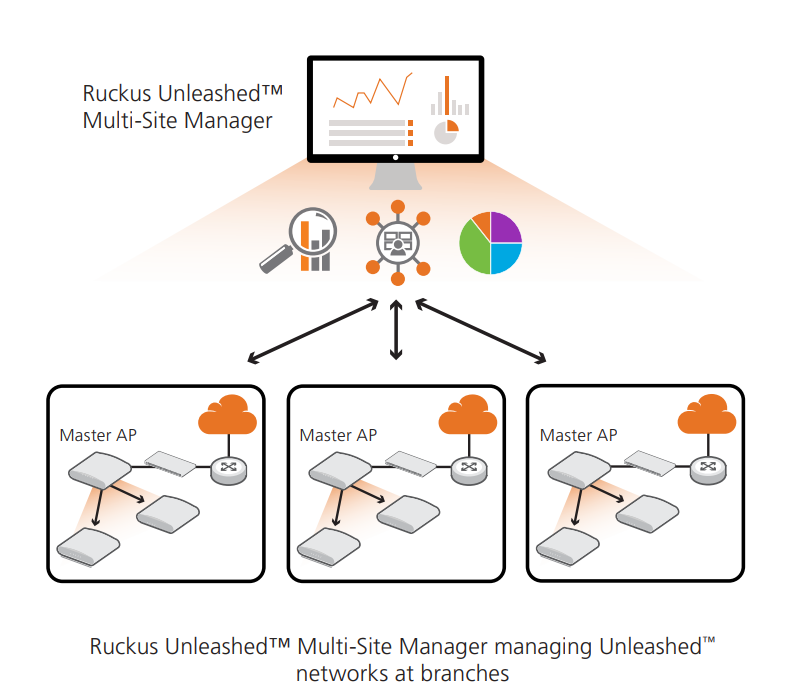

Unleashed Multi-Site Manager connectivity (up to 10,000 Unleashed networks)
Up to 512 local users supported (on the internal database)
Wi-Fi Calling and Troubleshooting
WLAN encryption/authentication options:
  • Open + None
  • Open + None + MAC Auth
  • Open + None + Web Auth
  • Open + WPA2 + AES + PSK
  • Open + WPA2 + AES + DPSK
  • 802.1X + WPA2 + AES + AAA
WLAN Prioritization
WLAN per radio, up to 16 WLANs per network
Zero-IT support for automatic configuration of client Wi-Fi settings
Zero Touch Mesh (Wi-Fi 6 supported)

Benefits:

BLAZING-FAST Wi-Fi PERFORMANCE

  • Wi-Fi 6 bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi.
  • Great user experience in the most challenging environments. BeamFlex+™ adaptive antenna technology dynamically reconfigures antenna patterns choosing from more than 4,000 patterns to provide the best performance for every device.
  • Lower costs, easier installation. SmartMesh™ wireless meshing technology can dynamically create self-forming, self-healing mesh networks by just checking a box—reducing the need for expensive cabling and complex mesh configurations.

INSTALL AND MANAGE WITH EASE

  • Up and running in under 5 minutes. With ZeroTouch Mesh, set up your entire Wi-Fi network in a few simple steps from a mobile device or browser with an intuitive, easy-to-understand user interface.
  • Total control at your fingertips. Gain detailed insights about your network and perform all key administrative tasks from anywhere with the free Unleashed app for iPhone and Android.

MORE THAN Wi-Fi

  • Network loaded with features. Enhance your network with built-in features such as Wi-Fi Calling, Guest Services, DPSK security, Zero IT onboarding and Application Visibility.
  • Switch management made easy. Manage your ICX switches from the Unleashed dashboard and mobile app. Gain insights about switch connectivity information. Perform software upgrade, configuration, backup and restore.
  • Built-in resiliency. If the internet goes out— even if an AP fails—you can continue to access printers and other network devices.

PROTECT YOUR INVESTMENT

  • Scale up when you need to. Easily expand your Wi-Fi across across 10,000 locations with the Unleashed Multi-Site Manager. Growing even more? Move up to a controller-based or cloudbased deployment with your existing Unleashed APs.

Ruckus Unleashed:

Introducing Ruckus Unleashed

RUCKUS Unleashed is a high-performance, simple-to-setup, easy-to-manage and affordable portfolio of access points. With built-in controller functionality, there’s no need to invest in a separate appliance. You can manage your entire network (APs and switches) from your phone or web browser. Deploying at multiple sites? Manage all your Wi-Fi networks from one place through the Unleashed Multi-Site Manager. You can get your network up and running in under 5 minutes—no complex configurations, and no expert installers required.

RUCKUS Unleashed APs make Wi-Fi easy for SMBs, and feature patented RUCKUS technologies that enable us to consistently beat the competition. With patented RUCKUS innovations such as BeamFlex+™, ChannelFly™ and SmartMesh™, Unleashed APs deliver higher speeds, better coverage and more reliable connections to every device, every time.

RUCKUS Unleashed APs also come packed with enterprise-class features that are easy to configure and manage. Wi-Fi Calling feature improves handling and overall quality of Wi-Fi Calling voice calls over Unleashed APs. Easily set up secure guest access with full-featured Guest Services. Monitor and optimize network performance for over 2,200 applications with Application Visibility and Control. Lock down access with enterprise-grade security— without the enterprise-scale complexity—using DPSK. And build a resilient Wi-Fi network that lets you continue to access printers and other devices even if the internet—or one of the APs—goes down.

Introducing Ruckus unleashed banner

Where can Ruckus Unleashed deliver maximum value?

RUCKUS Unleashed APs and switches are designed for small and midsize businesses with a single location or multiple locations with up to 128 APs, 2048 clients and 8 switches per deployment. They’re the perfect choice for smaller organizations that need to provide high-performing, enterprise Wi-Fi to employees, customers and guests without breaking the bank. Using the Unleashed mobile app, Unleashed APs can be managed by practically anyone—no specialized IT expertise required. And Unleashed APs are designed to easily scale up as the business grows—a key requirement for the 58% of SMBs that expect to grow within the next 6–12 months.

The RUCKUS Unleashed portfolio offers solutions for practically any SMB use case, at a wide range of price points. Choose from entry-level to ultra-high-performance APs, with both indoor and outdoor form factors and a variety of mounting options. Choose from a variety of ICX switches. Use RUCKUS Unleashed for:

  • Offices (law firms, health clinics, insurance agencies and others) that need enterprise-class performance, advanced security and guest access, built-in resiliency and easy onboarding
  • Multi-dwelling units (MDUs) such as large homes, small apartments and housing structures that want pervasive coverage
  • Small and midsize retail outlets (stores, restaurants, coffee shops) that want more in-depth Application Visibility and Control in a solution that’s easy to manage
  • Primary school classrooms and offices that want to unleash digital learning without compromising security

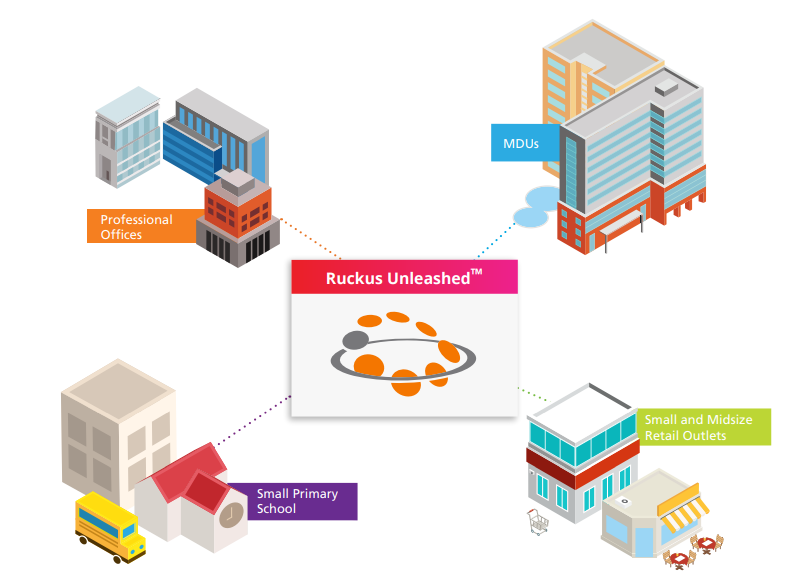

Ruckus Wireless Unleashed feature maximum value
Ruckus Wireless Unleashed feature maximum value

Enterprise-grade features

Ruckus Unleashed APs and switches come loaded with enterprise-grade features to customize, optimize and secure your Wi-Fi networks and deliver great user experiences. Key features are highlighted below.

FEATURE

BENEFIT

Guest Services

Give guests secure, high-performance Wi-Fi access, while isolating their traffic from the private business network easily. Customize your guest Wi-Fi portal with your logo, brand and messages. Provide Wi-Fi access through Guest Passes, or have guests authenticate using social media accounts such as Facebook to eliminate the hassle (and security holes) of sharing
Wi-Fi passwords.

Application Visibility and Control

Monitor the network usage patterns of over 2,200 applications with Deep Packet Inspection, and find out which ones are consuming the most resources. You can define application-specific access rules (such as limiting access to YouTube or social media), or even limit Wi-Fi speeds for specific applications and/or SSIDs.

Resiliency

Continue to access printers and other network devices even if internet connectivity fails. Users stay connected to the Wi-Fi network even if one or several APs fail for any reason, as long as at least one AP in the network is online.

Security

Use DPSK to eliminate the risks of shared passwords and lock down access to the Wi-Fi network—without complex configurations. In addition, secure your network and protect your clients with WPA encryption, client isolation and 802.1x for RADIUS and Active Directory.

Zero Touch Mesh

Add new Unleashed APs to the existing network securely over the air. Dramatically speed up and simplify the installation of an Unleashed network.

Multiple Language Support

Create and manage your Wi-Fi network in your own language. Ruckus Unleashed currently supports 13 languages.

URL Filtering

Define web access rules for your network users. Protect your network from malware and phishing sites.

Social Login

With the built-in Social Login feature, you can sign into the Unleashed mobile app using your Gmail, Facebook or Twitter account, and link your Unleashed Wi-Fi network. From that point on, you can manage your Unleashed
network from anywhere in the world using your social login.

Remote Management

Need a quick answer or help troubleshooting a network issue? Just tap the “Invite for Remote Management” option on the mobile app, and send a text message or email with a link containing all the Unleashed network information  to an expert.

AP Groups

Apply multiple configuration profiles to different groups of APs.

Zero IT

Easily onboard customers or employees onto your Wi-Fi network through a simple, self-service portal.

SSID Rate-Limiting

If you want to limit data speeds for a particular group of users (such as guest users), you can create a separate SSID with a data rate “speed limit” that you define.

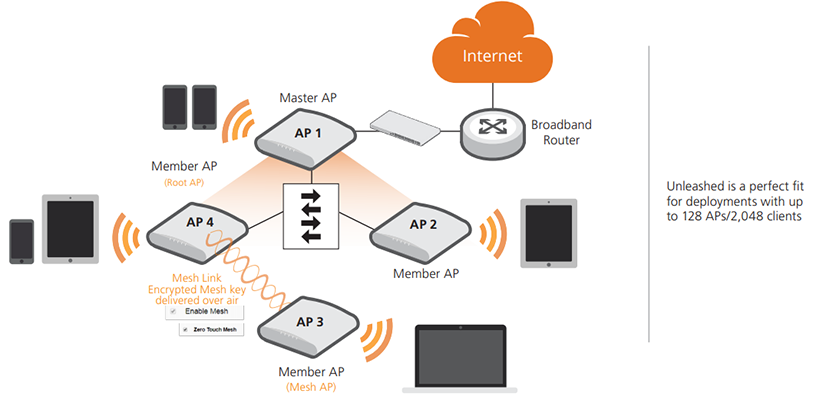

Unleashed is a perfect fit for deployments

Product Comparison:


Indoor Access Points

Indoor

HARDWARE SPECS

MU- MIMO

DATA SPEED

CONCURRENT USERS

ANTENNA PATTERNS (PER BAND)

ETHERNET PORTS

R310

802.11ac, 2x2:2

No

867 Mbps (5GHz)

300 Mbps (2.4GHz)

100

64

1x1GbE

R320

802.11ac Wave 2, 2x2:2

No

867 Mbps (5GHz)

300 Mbps (2.4GHz)

256

64

1x1GbE

R510

802.11ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

300 Mbps (2.4GHz)

512

512

2x1GbE

R550

802.11ax (Wi-Fi 6), 2x2:2

Yes

1200 Mbps (5GHz)

574 Mbps (2.4GHz)

512

64

2x1GbE

R610

802.11ac Wave 2, 3x3:3

Yes

1300 Mbps (5GHz)

450 Mbps (2.4GHz)

512

512

2x1GbE

R650

802.11ax (Wi-Fi 6), 4x4:4

Yes

2400 Mbps (5GHz)

574 Mbps (2.4GHz)

512

128

1x1GbE

1x2.5GbE

R710

802.11ac Wave 2, 4x4:4

Yes

1733 Mbps (5GHz)

600 Mbps (2.4GHz)

512

4,000+

2x1GbE

R720

802.11ac Wave 2, 4x4:4

Yes

1733 Mbps (5GHz)

600 Mbps (2.4GHz)

512

4,000+

1x1GbE 1x2.5GbE

R750

802.11ax (Wi-Fi 6), 4x4:4

Yes

2400 Mbps (5GHz)

1148 Mbps (2.4GHz)

1024

4,000+

1x1GbE 1x2.5GbE

R850

802.11ax (Wi-Fi 6), 8x8:8

Yes

4800 Mbps (5GHz)

1148 Mbps (2.4GHz)

1024

4,000+

1x 1/2.5/5 Gbps
1x 10/100/1000 Mbps


Outdoor Access Points

Outdoor

HARDWARE SPECS

MU- MIMO

DATA SPEED

CONCURRENT USERS

ANTENNA PATTERNS (PER BAND)

ETHERNET PORTS

T310

802.11ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

300 Mbps (2.4GHz)

512

64

1x1GbE

T510

802.11ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

300 Mbps (2.4GHz)

512

64

1x1GbE

T610

802.11ac Wave 2, 4x4:4

Yes

1733 Mbps (5GHz)

600 Mbps (2.4GHz)

512

4,000+

2x1GbE

T710
Omni & Sector

802.11ac Wave 2, 4x4:4

Yes

1733 Mbps (5GHz)

600 Mbps (2.4GHz)

512

4,000+

2x1GbE

T750

802.11ax (Wi-Fi 6), 4x4:4

Yes

2400 Mbps (5GHz)

1148 Mbps (2.4GHz)

1024

4,000+

1x1GbE
1x2.5GbE

T750SE

802.11ax (Wi-Fi 6), 4x4:4

Yes

2400 Mbps (5GHz)

1148 Mbps (2.4GHz)

1024

4,000+

1x1GbE
1x2.5GbE


Specialty Access Points

Specialty

HARDWARE SPECS

MU- MIMO

DATA SPEED

CONCURRENT USERS

ANTENNA PATTERNS (PER BAND)

ETHERNET PORTS

C110

802.11ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

300 Mbps (2.4GHz)

100

4

2x10/100MbE

1x DOCSIS 3.0

modem port

H320

802.11ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

150 Mbps (2.4GHz)

100

4

2x10/100MbE

1x1GbE

H510

802.11ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

300 Mbps (2.4GHz)

100

4

5x1GbE

M510

802.11 ac Wave 2, 2x2:2

Yes

867 Mbps (5GHz)

300 Mbps (2.4GHz)

512

64

2x 1GbE 1x RJ-45

*All access points operating as a Master AP will only support 100 clients.

Documentation:

Download the Ruckus Unleashed Product Family datasheet (PDF).

Pricing Notes:

CommScope RUCKUS Products
Ruckus ZoneFlex R650 Unleashed Series
RUCKUS Unleashed R650 dual-band 802.11abgn/ac/ax �Wireless Access Point with Multi-Gigabit Ethernet backhaul, 4x4:4 �+ 2x2:2 streams, OFDMA, MU-MIMO, BeamFlex+, dual ports, PoH/uPoE/802.3at PoE support.
Does not include power adapter or PoE injector. Includes Limited Lifetime Warranty
#9U1-R650-US00
Our Price: $1,095.00
WatchDog End User Support for Unleashed R650
Support includes Level 1-3 Support (24 x 7 x 365 days), Support web login, software updates and upgrades. Advance Replacement on the Unleashed APs is now included with support. There is no need to purchase Advance Replacement support separately.
WatchDog End User Support for Unleashed R650, 1 Yr
#806-RU65-1000
Our Price: $28.00
WatchDog End User Support for Unleashed R650, 3 Yr
#806-RU65-3000
Our Price: $56.00
WatchDog End User Support for Unleashed R650, 5 Yr
#806-RU65-5000
Our Price: $84.00
Ruckus ZoneFlex R650 Series Accessories
Ruckus Power over Ethernet (PoE) Injector (90 � 264 VAC 47-63 Hz)
#902-0180-US00
Our Price: $112.00
Ruckus Spares of US Power Adapter for Ruckus R720 - quantity of 1
#902-1170-US00
Our Price: $42.00
Ruckus Secure Mounting Bracket for Ruckus R720, R710. Mounts to hard wall/ceiling, pole, and truss. Also fits R500, R510, R610, R600, R310 and R700 without pad-lock support.
#902-0120-0000
Our Price: $25.00
Ruckus T-bar ceiling mount kit for R720, R710, R610, R510, R310�for mounting to flush frame ceiling
#902-0195-0000
Our Price: $25.00
email subscribe

Enjoy Exclusive Weekly Deals from Virtual Graffiti
