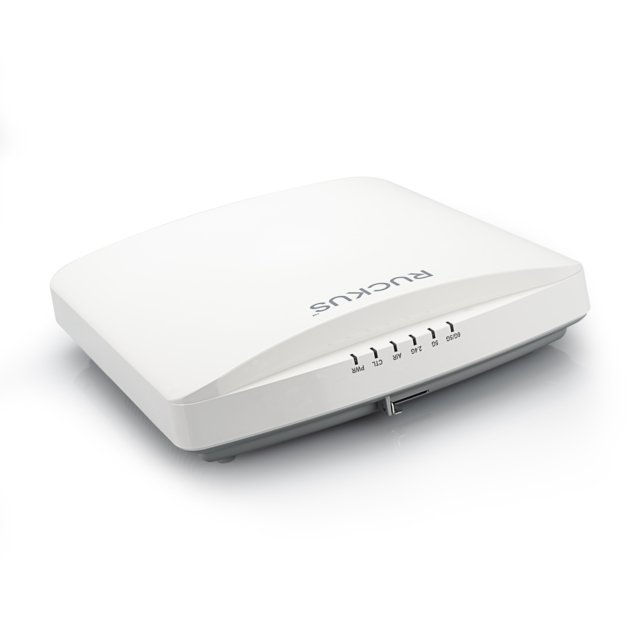

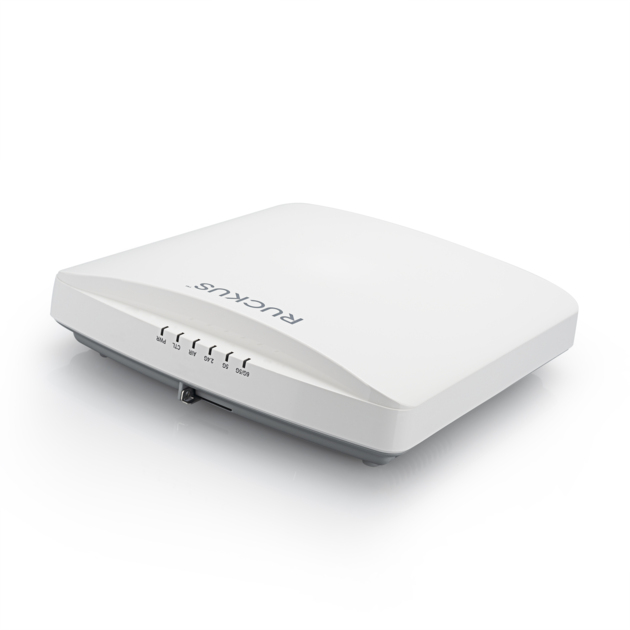

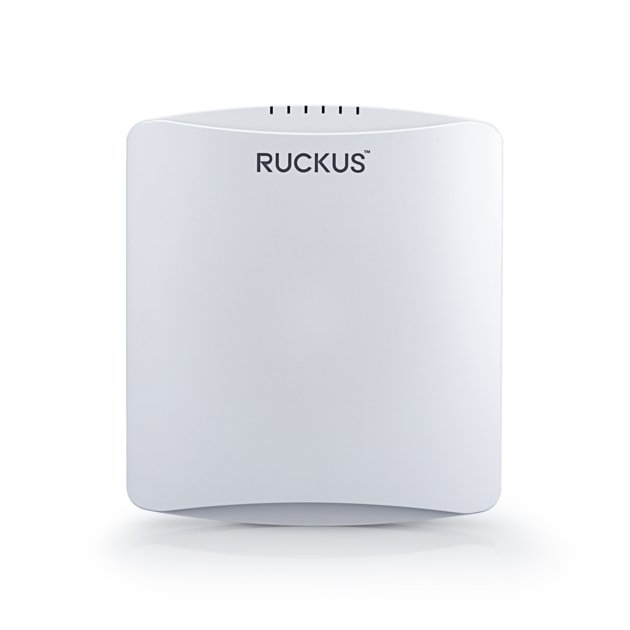

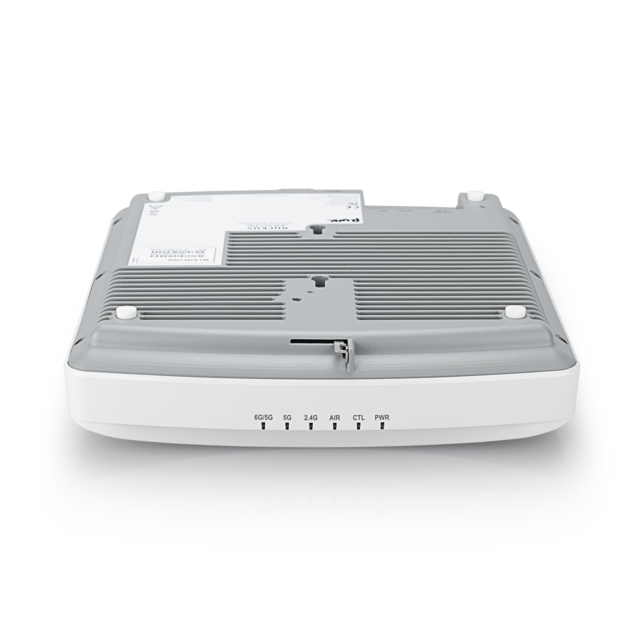

RUCKUS® R760 Indoor Access Point
Indoor Wi-Fi 6E 4x4:4 Access Point with 8.35 Gbps Data Rate

CommScope RUCKUS Products
RUCKUS® R760 Series
RUCKUS R760 US tri band 11ax indoor AP 4x4:4
RUCKUS R760 tri band 802.11abgn/ac/ax Wireless Access Point with Tri-Radio (6GHz/5GHz/2.4GHz 4x4:4) with Multi-Gigabit Ethernet backhaul, PoH/uPoE/802.3bt PoE support. Concurrent Tri-Band operation in 6GHz, 5GHz and 2.4GHz bands. (1x) 10Gbps PoE In port, (1x) 1 GbE port, USB 2.0, OFDMA, MU-MIMO, BeamFlex+. Does not include power adapter or PoE injector. Includes Limited Lifetime Warranty.
#901-R760-US00
Our Price: $2,395.00

More pricing below, click here!

Overview:

The RUCKUS R760 brings RUCKUS patented Wi-Fi optimization technology suite to the 6GHz band for organizations needing increased capacity and wider channels. The R760 takes advantage of the 6 GHz band via three dedicated radios. It is based on the latest Wi-Fi 6E standard, bridging the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. For organizations that will need more wireless capacity to grow.

The RUCKUS R760 is our highest capacity tri-band, tri-concurrent Wi-Fi 6E access point (AP) that supports 12 spatial streams (4x4:4 in 6GHz, 4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R760, with OFDMA, TWT and MU-MIMO capabilities, efficiently manages up to 1,536 client connections with increased capacity, improved coverage and performance in ultra-high dense environments. Furthermore, a 10 Gbps multi-gigabit Ethernet port mitigates backhaul capacity bottlenecks.

Additionally, the R760 has IoT onboard Zigbee/BLE and supports wireless standards beyond Wi-Fi in combination with the RUCKUS IoT Suite.

The R760 addresses the increasing client demands in transit hubs, auditoriums, stadiums, conference centers, and other highly trafficked indoor spaces. It is the perfect choice for data-intensive streaming multimedia applications like 4K video transmissions, while supporting latency sensitive voice and data applications with stringent quality-of-service requirements.

The R760 when paired with the RUCKUS Ultra-High-Density Technology Suite found only in the RUCKUS Wi-Fi portfolio, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:

  • Airtime Decongestion: Increases average network throughput in heavily congested environments
  • Transient Client Management: Reduces interference traffic from unconnected Wi-Fi devices
  • BeamFlex® Antennas: Extended coverage and optimized throughput with patented multi-directional antennas and radio patterns

Whether you’re deploying ten or ten thousand APs, the R760 is also easy to manage through our collection of on-premises or cloud-based management options1.

  1. With future software release.

Features & Benefits:

The R760 is based on the latest Wi-Fi standard, Wi-Fi 6E and bridges the performance gap from ‘gigabit’ Wi-Fi to ‘multi-gigabit’ Wi-Fi in support of the insatiable demand for better and faster Wi-Fi. The R760 makes it easy to deliver reliable, secure, ultra-high-performance connectivity to large enterprises, public venues, convention centers, and other challenging and ultra-high dense environments.

The R760 is RUCKUS’ highest capacity tri-band, tri-concurrent Wi-Fi 6E access point (AP) that supports 12 spatial streams (4x4:4 in 6GHz, 4x4:4 in 5GHz, 4x4:4 in 2.4GHz). The R760, with OFDMA, TWT and MU-MIMO capabilities delivers a combined data rate of 8.35 Gbps, efficiently manages up to 1,536 client connections with increased capacity, improved coverage and performance in ultra-high dense environments. Furthermore, a 10 Gbps multi-gigabit Ethernet port mitigates backhaul capacity bottlenecks.

Additionally, the R760 has IoT on board Zigbee/BLE and supports wireless standards beyond Wi-Fi in combination with the RUCKUS IoT Suite

  • Industry Leading Performance: Based on the latest Wi-Fi 6E standard it takes advantage of the 6 GHz band via three dedicated radios. Improve device performance, by enabling more simultaneous device connections with 12 spatial streams

  • Ultra-High-Density: Provides exceptional end-user experience within stadiums, large public venues, convention centers and school auditoriums with the RUCKUS® Ultra-High-Density Technology Suite. OFDMA technology optimizes channel utilization between clients increasing overall Wi-Fi capacity

  • Multigigabit access speeds: Optimized multi-gigabit Wi-Fi performance delivered using a built-in 10GbE/5GbE/2.5GbE Ethernet port to connect to multi-gigabit switches and eliminate backhaul capacity bottlenecks.

  • Smart Antenna Technology: For greater speed, fewer errors, and instant bandwidth delivery, RUCKUS BeamFlex+ patented technology offers first-of-its-kind smart antenna technology that maximizes signal coverage, throughput, and network capacity. It further increases MIMO diversity gain and maximize spatial multiplexing potential—at minimal cost.

  • Reduced Interference: Ruckus ChannelFly patented dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support. The use of the 6Ghz band triples the spectrum available for Wi-Fi significantly reducing interference.

  • Converged Access Point: Eliminate siloed wireless networks with a unified platform that augments Wi-Fi with an onboard BLE/Zigbee radio for seamless IoT integration with the option to integrate other wireless technologies via the USB port.

  • Multiple management options: Manage the R760 with on premise physical/virtual appliances, cloud*, and control auto-provisioning for faster deployment and seamless firmware upgrades.

  • Enhanced Security: Supports the latest Wi-Fi security standard, WPA3, for enhanced protection from man-in-the-middle attacks in the most secure way.

  • Better Mesh Networking: Minimize complexity by reducing expensive cabling with SmartMesh that dynamically creates self-forming, self-healing mesh networks.

  • More Than Wi-Fi: Support solutions beyond Wi-Fi with RUCKUS IoT Suite, RUCKUS Analytics, RUCKUS Cloudpath Enrollment System and onboarding software, RUCKUS SPoT Wi- Fi locationing engine.

Specifications:

WI-FI
Wi-Fi Standards
  • IEEE 802/11a/b/g/n/ac/ax
Supported Rates
  • 802.11ax: 4 to 4804 Mbps
  • 802.11ac: 6.5 to 1732 Mbps
  • 802.11n: 6.5 to 600 Mbps
  • 802.11a/g: 6 to 54 Mbps
  • 802.11b: 1 to 11 Mbps
Supported Channels
  • 2.4GHz: 1-13
  • 5GHz: 36-64, 100-144, 149-165
  • 6GHz: 1-233
MIMO
  • 4x4 SU-MIMO
  • 4x4 MU-MIMO
Radio Chains and Streams
  • 4x4:4 (2.4/5/6GHz)
Channelization
  • 20, 40, 80, 160/80+80MHz
Security
  • WPA-PSK, WPA2 AES, WPA3 SAE, WPA3 Enterprise, 802.11w, Dynamic PSK (DPSK), OWE
  • WIPS/WIDS
Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • MBO
  • Hotspot 2.0
  • Captive Portal
  • WISPr
RF
Antenna Type
  • BeamFlex+ adaptive antennas with polarization diversity
  • Adaptive antenna that provides 4,000+ unique antenna patterns per band
Antenna Gain (max)
  • Up to 4dBi
Peak Transmit Power (Tx port/chain + Combining gain)
  • 2.4GHz: 22dBm
  • 5GHz: 22dBm
  • 6GHz: 22dBm (subject to compliance Ѵbmb|-ࢢonső
Frequency Bands
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)
  • U-NII-5 (5.925–6.425GHz)
  • U-NII-6 (6.425–6.525GHz)
  • U-NII-7 (6.525–6.875GHz)
  • U-NII-8 (6.875–7.125GHz)
2.4GHZ RECEIVE SENSITIVITY (dBm)
HT20 HT40 VHT20 VHT40
MCS0 MCS7 MCS0 MCS7 MCS0 MCS7 MCS0 MCS7
-98 -80 -95 -77 -98 -80 -95 -77
HE20 HE40
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-98 -80 -75 -69 -95 -77 -72 -66
5GHZ RECEIVE SENSITIVITY (dBm)
VHT20 VHT40 VHT80
MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9 MCS0 MCS7 MCS8 MCS9
-96 -79 -75 -73 -93 -76 -72 -70 -90 -73 -69 -67
HE20 HE40 HE80
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-96 -79 -73 -68 -93 -76 -70 -65 -90 -73 -67 -63
6GHZ RECEIVE SENSITIVITY (dBm)
HE20 HE40
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-97 -80 -74 -69 -94 -77 -71 -66
HE80 HE160
MCS0 MCS7 MCS9 MCS11 MCS0 MCS7 MCS9 MCS11
-91 -74 -68 -62 -88 -71 -65 -59
2.4GHZ TX POWER TARGET (PER CHAIN)
Rate Pout (dBm)
MCS0 HT20 22
MCS7 HT20 17
MCS8 VHT20 16.5
MCS9 VHT40 16
MCS11 HE40 14
5GHZ TX POWER TARGET (PER CHAIN)
Rate Pout (dBm)
MCS0, VHT20 22
MCS7, VHT40, VHT80 18
MCS9, VHT40, VHT80 16
MCS11, HE20, HE40, HE80 13
6GHZ TX POWER TARGET (PER CHAIN)
Rate Pout (dBm)
MCS0, HE160 15.5
MCS7, HE160 15.5
MCS9, HE160 15.5
MCS11, HE160 13
POWER CONSUMPTION
Mode Power Consumption System Cofiguration Wi-Fi Radios
DC Power 38.3W
  • 10Gbps Ethernet Enabled
  • 1Gbps Ethernet Enabled
  • USB Enabled (3W)
  • Zigbee/BLE Enabled
2.4GHz (4x4) Tx 22dBm

5GHz (4x4) Tx 22dBm2

5GHz / 6GHz (4x4) Tx 22dBm
802.3bt5 PoH, uPoE 36.08W1
  • 10Gbps Ethernet Enabled
  • 1Gbps Ethernet Enabled
  • USB Enabled (3W)1
  • Zigbee/BLE Enabled
2.4GHz (4x4) Tx 22dBm

5GHz (4x4) Tx 22dBm2

5GHz / 6GHz (4x4) Tx 22dBm
802.3at

2-5-6 Mode
25.5W
  • 10Gbps Ethernet Enabled
  • 1Gbps Ethernet Disabled
  • USB Disabled (3W)
  • Zigbee/BLE Disabled
2.4GHz (4x4) Tx 13dBm

5GHz (4x4) Tx 14dBm

6Ghz (4x4) TX 14dBm
802.3at

2-5-5 Mode
25.5W
  • 10Gbps Ethernet Enabled
  • 1Gbps Ethernet Disabled
  • USB Disabled (3W)
  • Zigbee/BLE Disabled
2.4GHz (4x4) Tx 15dBm

5GHz (4x4) Tx 16dBm

5Ghz (4x4) Tx 15dBm
PERFORMANCE AND CAPACITY
Peak PHY Rates
  • 2.4GHz: 1148 Mbps
  • 5GHz: 2400 Mbps
  • 6GHz: 4800 Mbps
Client Capacity
  • Up to 1536 clients per AP
SSID
  • Up to 36 per AP
RUCKUS RADIO MANAGEMENT
Antenna Optimization
  • BeamFlex+
  • Polarization Diversity with Maximal Ratio Combining (PDMRC)
Wi-Fi Channel Management
  • ChannelFly 2.0
  • Background Scan Based
Client Density Management
  • Adaptive Band Balancing
  • Client Load Balancing
  • Airtime Fairness
  • Airtime-based WLAN Prioritization
Quality of Service
  • SmartCast1
  • QoS-based scheduling
  • Directed Multicast
  • L2/L3/L4 ACLs
Mobility
  • SmartRoam
Diagnostic Tools
  • Spectrum Analysis
  • SpeedFlex
NETWORKING
Controller Platform Support
  • SmartZone
  • Standalone
  • Cloud (Future support)
IP
  • IPv4, IPv6, dual-stack
VLAN
  • 802.1Q (1 per BSSID or dynamic per user based on RADIUS)
  • VLAN Pooling
  • Port-based
802.1x
  • Authenticator & Supplicant
Tunnel
  • L2TP, GRE, Soft-GRE
Policy Management Tools
  • Application Recognition and Control
  • Access Control Lists
  • Device Fingerprinting
  • Rate Limiting
IoT
  • Onboard

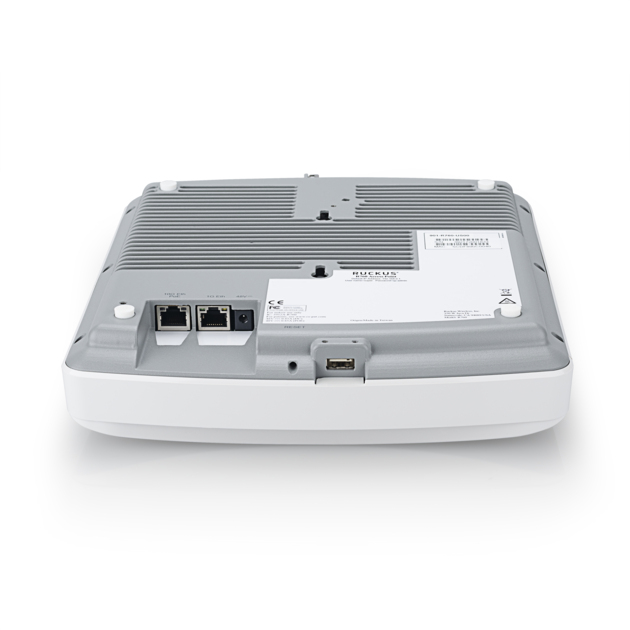

PHYSICAL INTERFACES
Ethernet
  • One 10Gbps Ethernet port and one 1Gbps Ethernet port
  • Power over Ethernet (802.3at/bt) with Category 6/6a cable
  • LLDP

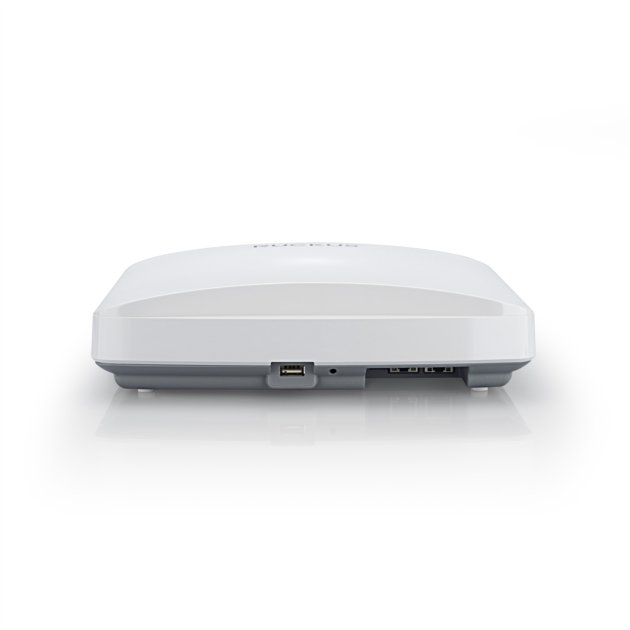

USB
  • 1 USB 2.0 port, Type A
PHYSICAL CHARACTERISTICS
Physical Size
  • 27.2cm (L), 24.3cm (W), 5.9cm (H)
  • 10.7in (L) x 9.6in (W) x 2.3in (H)
Weight
  • 1.79kg
  • 3.95lbs

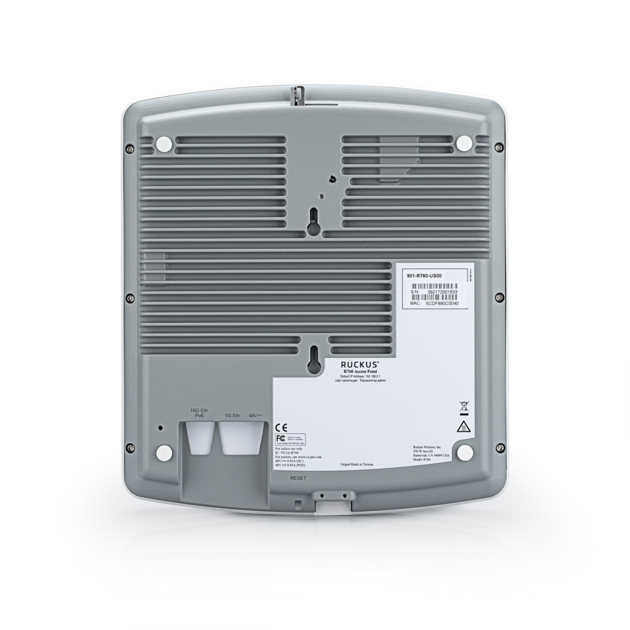

Mounting
  • Wall, accoustic ceiling, desk
  • Secure bracket (sold separately)
Physical Security
  • Hidden latching mechanism
  • Safety Cable
  • Bracket (902-0120-0000) (sold separately)
Operating Temperature
  • -10°C (14°F) to 50°C (122°F)
Operating Humidity
  • Up to 95%, non-condensing
CERTIFICATIONS AND COMPLIANCE
Wi-Fi Alliance2
  • Wi-Fi CERTIFIED™ a, b, g, n, ac, 6, 6E
  • Passpoint® R3, Vantage R2
Standards Compliance3
  • IEC/EN/UL 60950-1 Safety
  • IEC/EN/UL 62368-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • UL 2043 Plenum
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation
SOFTWARE AND SERVICES
Location Based Services
  • SPoT
Network Analytics
  • RUCKUS Analytics
Security and Policy
  • Cloudpath

  1. To be available in subsequent release.
  2. For complete list of WFA certifications, please see Wi-Fi Alliance website.
  3. For current certification status, please see price list.

Documentation:

Download the RUCKUS R760 Indoor Wi-Fi 6E Access Point Datasheet (PDF).

Pricing Notes:

CommScope RUCKUS Products
RUCKUS® R760 Series
RUCKUS R760 US tri band 11ax indoor AP 4x4:4
RUCKUS R760 tri band 802.11abgn/ac/ax Wireless Access Point with Tri-Radio (6GHz/5GHz/2.4GHz 4x4:4) with Multi-Gigabit Ethernet backhaul, PoH/uPoE/802.3bt PoE support. Concurrent Tri-Band operation in 6GHz, 5GHz and 2.4GHz bands. (1x) 10Gbps PoE In port, (1x) 1 GbE port, USB 2.0, OFDMA, MU-MIMO, BeamFlex+. Does not include power adapter or PoE injector. Includes Limited Lifetime Warranty.
#901-R760-US00
Our Price: $2,395.00
RUCKUS® R760 accessories
Multigiabit PoE Injector, 60W, US
Spares of Power over Ethernet (PoE) Injector (1.0/2.5/5.0/10.0 Gbps) quantity of 1 unit, US Plug
#902-1180-US00
Our Price: $150.00
Secure Mounting Bracket for R-series
Multipurpose mounting bracket for R-Series indoor AP‘s. Supports mounting to hard wall, ceiling, pole or truss (Secure Mounting Bracket for Ruckus R720, R710, R500, R510, R610, R600, R310, R320, M510 and R700 without pad-lock support.)
#902-0120-0000
Our Price: $38.00
Spare of US Power Adapter for R760
Kit, Spare, Universal Power Adapter, 48V/50W (115V/230VAC), w/power cord, US
#902-2171-US00
Our Price: $90.00
