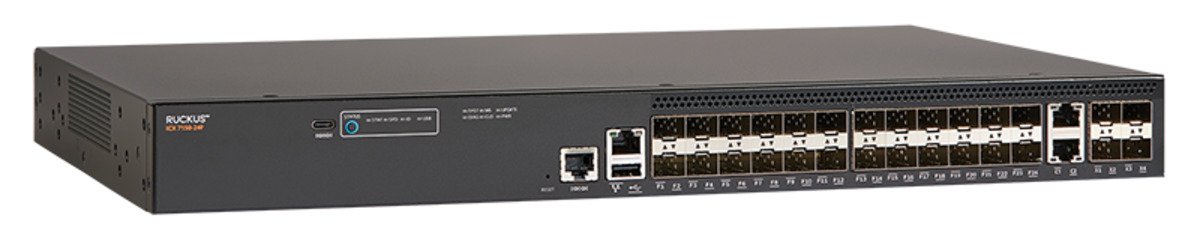

RUCKUS ICX 7150-24F Switch
Entry-Level Access 24 Ports 1G Fiber Switch

Overview:

Entry-Level Access Switch Family Delivers Unprecedented Performance and Features in ITs Class

The RUCKUS ICX 7150 family of stackable switches delivers the performance, flexibility, and scalability required for enterprise access deployment, raising the bar with non-blocking performance and up to 8x10 GbE ports for uplinks or stacking. It offers seamless interoperability with RUCKUS wireless products to deliver unified wired and wireless network access. In addition, RUCKUS Multigigabit Ethernet technology offers bandwidth speeds needed to optimize performance of the latest generation high performance wireless access points and edge devices, over standard Ethernet cables.

The RUCKUS ICX 7150 family of switches are available in three formats:

Stacking Across the ICX 7150 Family

RUCKUS stacking technology² makes it possible to stack up to twelve RUCKUS ICX 7150 switches into a single logical switch. This allows the RUCKUS ICX 7150 to deliver a class-leading 480 Gbps of aggregated stacking bandwidth and offer simple and robust expandability for future growth. Stacking is supported across the ICX 7150 family and all ICX 7150 models including the ICX 7150 compact switch and the ICX 7150-48ZP can be mixed within the same stack. This stacked switch has only a single IP address that simplifies management and offers transparent forwarding across up to 600×1 GbE ports or up to 192×2.5 GbE ports, and up to 96×10 GbE ports. When new switches join the stack, they automatically inherit the stack’s existing configuration file, enabling a plug-and-play network expansion.

Because the ICX 7150-48ZP switch has twice as many uplink ports, when it is added to a stack of other ICX 7150 switch models, the effective bandwidth of all the switches is doubled. By designing the stack this way, all four of the 10GbE ports on the ICX 7150 switches can be used for stacking (rather than having to split the four ports between stacking and uplinks), and leveraging four of the 10GbE ports on the ICX 7150-48ZP for stacking and the other four 10GbE ports can be used for uplinks.

Enterprise-Class Availability

The RUCKUS ICX 7150 Switches help deliver continuous availability to optimize the user experience. RUCKUS stacking technology provides high availability by performing real-time state synchronization across the stack and transferring switch management control from the master stack controller to the standby controller if the master stack controller experiences a failure. When hot-inserting or hot-removing a stack member to increase capacity or perform service upgrade, traffic flows will not experience interruption.

In addition to stack-level high availability, RUCKUS ICX 7150 Switches also support stack level ISSU (In Service Software Upgrade), a unique capability that allows the user to perform software upgrades to a RUCKUS ICX 7150 stack without service interruption. Taking highavailability and reliability even further, the RUCKUS ICX 7150 Z-Series switch offers redundant hot swappable load sharing power supplies and up to 2 hot swappable fans.

Silent Operation

The RUCKUS ICX 7150-C12P compact switch, along with the RUCKUS ICX 7150-24 and the ICX 7150-48 switches, feature a fanless design that enables it to operate silently. The RUCKUS ICX 7150-24P and the ICX 7150-48P offer a “silent mode” configuration option, enabling these switches to operate with the fan disabled while providing a PoE budget of 150 watts. This Ruckusexclusive feature enables users in hospitality, education, healthcare, and retail industries to deploy these switches outside of the wiring closet without disrupting the work environment.

Multigigabit Ethernet Support

The RUCKUS ICX 7150-48ZP Switch raises the bar for entry-level switches even further with 16x IEEE 802.3bz compliant 2.5 GbE ports, up to 8×10 GbE uplink ports, dual redundant load sharing power supplies and class-leading stacking density with up to 12 switches per stack. It stacks with all other members of the ICX 7150 family allowing organizations to buy what they need now and easily scale as the need for Multigigabit support emerges. It is designed to work seamlessly with RUCKUS wireless access points to deliver unified wired and wireless network access.

Power Next-Generation Edge Devices

All ICX 7150 family members offer PoE options. The compact 12 port switch delivers PoE+ on all ports with a 124W PoE budget. The 24- and 48-port ICX 7150 switches offer up to 740W of PoE+ power and the ICX 7150 Z-Series offers an industry leading 1480W PoE budget when equipped with 2 power supplies. In addition to supporting PoE and PoE+, the RUCKUS ICX 7150 Z-Series also offers Power over HDBaseT (PoH). This new, high power HDBT standard delivers up to 90 watts per port through a standard Ethernet cable, simplifying the wiring of next-generation Ethernet-connected devices such as high-performance wireless APs, large HD displays, video surveillance equipment, and VDI thin terminals, enabling data and power to be carried by a single Ethernet wire. The PoE, PoE+ and PoH capabilities reduce the number of required power receptacles and power adapters while increasing reliability and wiring flexibility.

With a 1,480-watt power budget per switch (with two power supplies), the RUCKUS ICX 7150 48ZP model can supply Class 4 PoE+ power (30 watts) to every port and PoH power (90 watts) on 16 dedicated Multigigabit ports.

Features:

Enterprise-Class Features Across All RUCKUS ICX Switches

The RUCKUS ICX 7150 is one of the ICX switch families delivering the enterprise class features for flexibility, scalability and simplified management.

• RUCKUS Campus Fabric technology delivers unmatched flexibility, scalability and simplified management for campus network deployments. Incorporating all of the ICX 7000 switch families with up to 1800 ports in a single logical domain, Campus Fabric allows customers the benefits of a traditional chassis, with the flexibility of stackable switches at a dramatically reduced Total Cost of Ownership (TCO).
• Advanced stacking goes beyond traditional stacking with capabilities that take flexibility, ease of management and cost effectiveness to then next level, including:
  • Stacking on standard Ethernet ports
  • Long-distance stacking
  • No hardware module require for stacking
  • In Service Software Upgrade (ISSU) to minimize downtime
  • Superior scalability with the industry-leading number of switches per stack
  • Stacking at the access, aggregation and core layers
• Enterprise-Class Availability to improve resiliency and minimize downtime, including:
  • Hitless stack failover
  • Hot-insertion/removal of stack members
  • Redundant power supplies
  • In Service Software Upgrades for switch stacks
• On-boarding and security policies across ICX switches and wireless networks.
• OpenFlow 1.3 protocol support in hybrid mode allows user to deploy traditional Layer 2/3 forwarding with OpenFlow on the same port for Software Defined Network (SDN) enabled programmatic control of the network
• Open Standards based management, monitoring and authentication
  • sFlow-based network monitoring to help analyze traffic statistics and trends on every link and overcome unexpected network congestion
  • Open-standards management includes Command Line Interface (CLI), Secure Shell (SSHv2), Secure Copy (SCP), and SNMPv3
  • Support for Access Controller Access Control System (TACACS/TACACS+) and RADIUS authentication helps ensure secure operator access
  • LLDP and LLDP-MED protocol support for configuring, discovering, and managing network infrastructure such as QoS, security policies, VLAN assignments, PoE power levels, and service priorities

Benefits:

Stackability Simplifies Management

• Class-leading stacking scalability with up to 12 switches per stack¹
• Long-distance stacking up to 10 km using standard optics or cables

10 GBE Ports Optimize Network Performance

• Up to 8×10 GbE SFP+ ports for stacking or uplinks

Dual Power Supplies for High Availability

• Dual load-sharing, hot-swappable power supplies available on the Z-Series switch

Multigigabit Support Enables Next Generation Wireless Deployment

• Up to 16x 2.5 GbE ports optimized for 802.11ac Wave 2 wireless deployment

Class Leading PoE Budget to Power Advanced Edge Devices

• PoE+/PoH budget (up to 1,480 watts)
• Supports advanced wireless APs and video surveillance equipment

Silent Operation for Deployment in the Work Environment

• Fanless design or silent mode enables nondisruptive deployment

Advanced L3 Maximizes Flexibility

• RIP, OSPF, VRRP, PIM, PBR L3 features¹

Campus Fabric Reduces Cost of Operations, Increases Flexibility

• RUCKUS Campus Fabric¹ delivers the benefits of a chassis with the flexibility of stackables
• Scales to over 1800 ports

¹ Feature to be supported in a future software release

Deployment:

The RUCKUS Campus Fabric architecture versus a traditional multi-tier campus network.

Specifications:

	Access				Access / Aggregation		Aggregation / Core
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More
Feature	ICX 7150-Compact	ICX 7150	ICX 7150 Z-Series	ICX 7250	ICX 7450	ICX 7650	ICX 7750	ICX 7850
Switching Capacity (max)	120Gbps	180Gbps	304Gbps	256Gbps	336Gbps	1.128Tbps	2.56Tbps	6.4Tbps
1GbE RJ-45 ports	8 or 10 or 12 +2	24 +2 or 48 +2	48	24 or 48	24 or 48	48	48
1GbE SFP ports	2	24 +4	8	8	48	48	48	48
1/2.5GbE RJ-45 ports (max)	8		16
1/2.5/5/10GbE RJ-45 ports (max)	2					24
10GbE SFP+ ports (max)	2	4	8	8	12	24 +4	961	1281
10GbE RJ-45 ports (max)	2				12	24	48
25GbE SFP28 ports								48
40GbE QSFP+ ports (max)					3	2	32
100GbE QSFP28 ports (max)						2		32
PoE Power Budget (max)	240W	740W	1480W	1480W	1480W	1500W
Switches per stack (max)	12	12	12	12	12	12	12	12
Aggregate stack bandwidth	240Gbps	480Gbps	480Gbps	480Gbps	960Gbps	2.4Tbps	5.76Tbps	9.6Tbps

¹ Feature to be supported in a future release.
² 10 Gbps SFP+ ports are required for stacking.

Specification Feature Set:

¹ Feature to be supported in a future release.

Compare:

RUCKUS ICX Switch Family

	Access				Access/ Aggregation	AGG/Core
	ICX 7150 Compact	ICX 7150	ICX 7150 Z-Series	ICX 7250	ICX 7450	ICX 7750
Switch Capacity
Switching capacity (max)	68 Gbps	180 Gbps	304 Gbps	256 Gbps	336 Gbps	576 Gbps
1 GbE RJ-45 ports	12 +2	24 or 48 +2	48	24 or 48	24, 32 or 48	48
1 GbE SFP ports	2	4	8	8	48	48
1/2.5 GbE RJ-45 ports			16		8
10 GbE SFP+ ports (max)	2	4	8	8	12	962
10 GbE RJ-45 ports (max)					12	48
40 GbE QSFP+ ports (max)					3	32
PoE Power Budget (max)	124 W	740 W	1480 W	1480 W1	1496 W
Switches per stack (max)	12	12	12	12	12	12
Aggregated stack bandwidth	240 Gbps	480 Gbps	480 Gbps	480 Gbps	960 Gbps	5.76 Tbps
Key Features
PoE / PoE+
Stacking	3	3
sFlow
L3: Static Routing / RIP/ OSPF	3	3
OpenFlow	3	3
EEE (Energy Efficient Ethernet)
Campus Fabric	3	3	3
Redundant power option
Hot-Swap PSUs & Fans
Multigig (IEEE 802.3bz)
PoH (90W per port)
L3: BGP
L3: VRF
MACsec
IPsec VPN
Reversible airflow option
MCT

¹ With external power supply unit.
² With QSFP+ to 4 SFP+ splitter cables.
³ To be supported in a future software release.

Documentation:

Download the RUCKUS ICX 7150 Switches Datasheet (PDF).

Download the RUCKUS ICX Switch Family Datasheet (PDF).
