HotSpot 2.0
Making the Wi-Fi Roaming Experience as Secure and Easy to Use as With Cellular

Hotspot 2.0 is focused on enabling a mobile device to automatically discover APs that have a roaming arrangement with the user’s home network and then securely connect. This is very much the cellular experience that we all enjoy when getting off an airplane just about anywhere in the world. Wi-Fi roaming would apply anytime a mobile device does not see an AP belonging to its home network provider. A user could roam on a Wi-Fi network that is across town or on the other side of the world. Roaming partners can include MSOs, MNOs, wireline operators, public venues, enterprises, and basically any other entity that has Wi-Fi assets. Roaming can be accomplished with dual mode devices (smartphones) or Wi-Fi-only devices like tablets and laptops.

With Hotspot 2.0, the client device is equipped by an authentication provider with one or more credentials, such as a SIM card, username/password pair, or X.509 certificate. The device can then query Hotspot 2.0 capable APs to see if it belongs to a visited network that supports roaming with the devices home network.

Hotspot 2.0 is a program of the Wi-Fi Alliance, and is supported by the Passpoint(™) certification program which ensures APs and client devices comply with the technical specifications. Hotspot 2.0 capabilities are emerging in a series of releases. Release 1 came out in June 2012 and was focused on automating network discovery/selection, authentication, and over-the-air security. Other releases will follow in the coming years that will add additional capabilities. Mobile devices with Hotspot 2.0 support are now available in the market. While vendors may choose to introduce new models to enable Hotspot 2.0, these capabilities can be added via software updates in most cases.

To enable a compelling roaming experience, groups such as the Wireless Broadband Alliance and CableLabs are working to create frameworks and standards for the linking of various operators’ authentication domains. And a number of companies are interested in providing “roaming hubs’ that would provide an authentication service for Wi-Fi network providers.

The hassles and risks of connecting to public Wi-Fi will soon be a thing of the past, thanks to Hotspot 2.0.

Hotspot 2.0 Release 1

Release 1 is focused squarely on over-the-air security and network discovery and selection. The key enabling protocols are IEEE 802.11u, along with IEEE 802.1X, selected EAP methods, and IEEE 802.11i. The latter three are part of the WPA2- Enterprise certification program in the Wi-Fi Alliance, and are standard on all smartphones. While the certification is called "WPA2-Enterprise", the end result is a process that is every bit as secure and easy to use as what exists in the cellular world.

The IEEE 802.11u protocol enables a mobile device to have a dialog with a Wi-Fi AP "pre-association" to determine the capabilities that the network can support. The two protocols that 802.11u uses to make this happen are the generic advertisement service (GAS) and the access network query protocol (ANQP). These protocols run on top of 802.11 and enable the Hotspot 2.0 experience

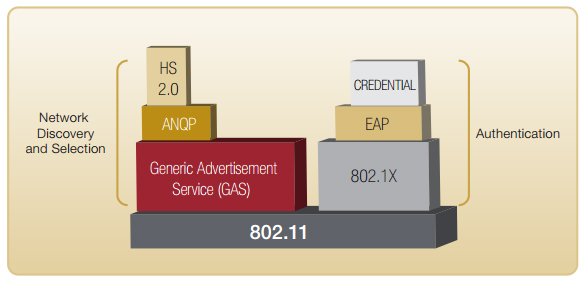

Hotspot 2.0 protocol stack
Hotspot 2.0 protocol stack

The Process of Network Discovery and Selection
When a user with an HS2.0 capable mobile device comes within range of a Hotspot 2.0 capable AP, it will automatically open up a dialog with that AP to determine its capabilities. This is done using ANQP packets that are carried at layer 2 by the GAS service (Note: the device has not yet attached and does not yet have an IP address). It is the exchange of ANQP packets that allows the mobile device to automatically learn the capabilities of an AP. A few of the more important capabilities include:

1) The domain name of the network operator. If the AP is part of the user's home network then no roaming is required and the user can move straight to authentication. If the AP is not on the user's home network, then roaming is required.

2) If roaming is required, then the list of roaming partners that are supported by that AP must be passed down to the mobile device via the ANQP protocol. This can be provided in the form of a PLMN (Public Land Mobile Network) ID, realm, or the organizational identifier (OI):

It is possible that service providers might advertise roaming consortiums in more than one way. A mobile operator might advertise both a PLMN ID and a realm. The former is used for SIM-based devices and the latter for non-SIM devices. A wireline operator or an MSO would only advertise their realm, as they don't have a PLMN ID.

3) Other attributes that can be relayed to the mobile device include backhaul bandwidth and loading on the access network. This is useful information if there is more than one AP that can roam with the user's home network. Other details that are passed down to the phone as part of the HS2.0 process include:

Once the mobile device learns the roaming partners and the identity of the AP operator, it invokes some basic, built-in network selection policies to determine which AP to join. The basic policy provided by Passpoint Release 1 capable mobile devices is, in the absence of [overriding] user-configured preferences, to prefer Hotspot 2.0 compliant APs over legacy APs (i.e., non-Hotspot 2.0 APs) and to prefer an AP operated by the user's home operator over one operated by a visited operator. Users are allowed to specify that certain Wi-Fi networks should always have priority and these would typically include the user's home network and their work network.

The ability of the mobile device to "learn" about Wi-Fi network capabilities pre-association will completely transform the Wi-Fi user experience. It will also completely change the nature of an SSID (Service Set IDentifier). In the past, users and devices had to "remember" SSIDs that have provided connectivity in the past, so that they can be accessed again in the future. These are typically SSIDs for which they have credentials or which provide open access. With HS2.0 the importance of SSIDs will be reduced, and what really matters is does the visited AP have a roaming arrangement with my home network provider. In fact the notion of having an AP advertise many different SSIDs for different purposes will also be greatly reduced in favor of Hotspot 2.0 based advertisements. This should also enhance the performance of mobile networks, as it reduces the airlink traffic associated with the beacons generated by these additional SSIDs.

Secure Authentication
Hotspot 2.0 also requires the use of 801.1X authentication. Captive portal based authentication is not supported in HS2.0.1 As part of the 802.1X authentication process, the following EAP methods must be supported:

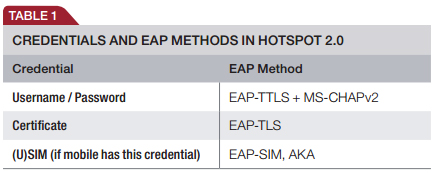

Credentials and EAP Methods in Hotspot 2.0

WPA2-Enterprise also requires that the airlink be encrypted using 802.11i. This addresses a security vulnerability with open access or portal based hotspots that don't provide airlink encryption. Hotspot 2.0 plugs this vulnerability with 802.11i, which uses AES (advanced encryption standard) technology. This combination of protocols is what enables Wi-Fi to be every bit as secure and easy to use as a cellular service. In addition, Hotspot 2.0 Release 1 improves upon WPA2-Enterprise security by eliminating the so-called "Hole-196" attack. In these attacks, a device can forge broadcast or multicast frames (as if coming from a legitimate AP) to initiate its attack.

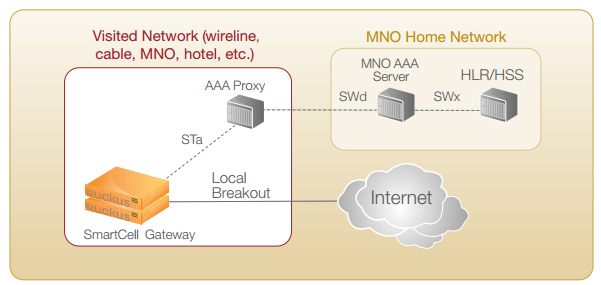

Figure 2: Authenticating a roaming user to their home network
Figure 2: Authenticating a roaming user to their home network

Figure 2 shows the process by which a user in a visited network can have their authentication request proxied back to the home network. In this example the visited network could be an MNO, MSO, a private enterprise, a public venue (such as a hotel, convention center, airport, etc.), or wireline provider. Wi-Fi greatly expands the universe of possible roaming partners, and thus the utility of a Wi-Fi network.

Settlements and the Business of Roaming
Hotspot 2.0 will greatly enhance the opportunities for Wi-Fi operators to monetize their networks through roaming arrangements with other providers. These providers can include MNOs, MSOs, wireline providers, and a wide variety of enterprises including hotels, convention centers, hospitals, airports, etc. This also queues up the very important subject of settlements, which are used to make sure all operators (mobile or wireline) get paid for services rendered, if appropriate. In 2012, WBA updated their WRIX service specifications, which governs settlements and billing. Key elements include WRIZ-i (interconnect), WRIX-d (data clearing), and WRIX-f (financial settlements). These services can be deployed by the home and visited network providers, either directly of through a 3rd party WRIX service provider.

The Impact of Hotspot 2.0

Hotspot 2.0's impact on the industry will be enormous. Mobile operators are already seeing their networks overloaded by data traffic and are looking at all available options to increase densification. At the top of their list are technologies like Wi-Fi and LTE small cells. Cable and wireline operators are taking advantage of their backhaul capabilities to rapidly build-out an extensive Wi-Fi footprint. This technology has also been extensively deployed in public venues like hotels, airports, convention centers, stadiums, hospitals, etc. With Hotspot 2.0, it will now be possible to link together this huge footprint of Wi-Fi APs through a web of roaming arrangements. Users will be able to seamlessly roam onto Wi-Fi networks from almost any location.

The net result for the MNO is much greater network densification then could be achieved by building out a network of APs on their own and a much better experience for the subscriber. Users no longer need to know or care about SSIDs and authentication protocols. Instead, they get an always bestconnected experience.

Venue owners and operators can begin to better monetize their Wi-Fi network investments through these roaming arrangements and the settlements that they entail. A mobile operator that deploys a Wi-Fi network in a stadium can now monetize that asset by allowing subscribers of other operators to roam onto that network. Hotels can likewise allow subscribers of all the different mobile operators to roam onto their in-building Wi-Fi networks.

Hotspot 2.0 technology will radically transform the wireless industry, and it is set to emerge in 2013 in a very big way.
